Vacuum Light

Description

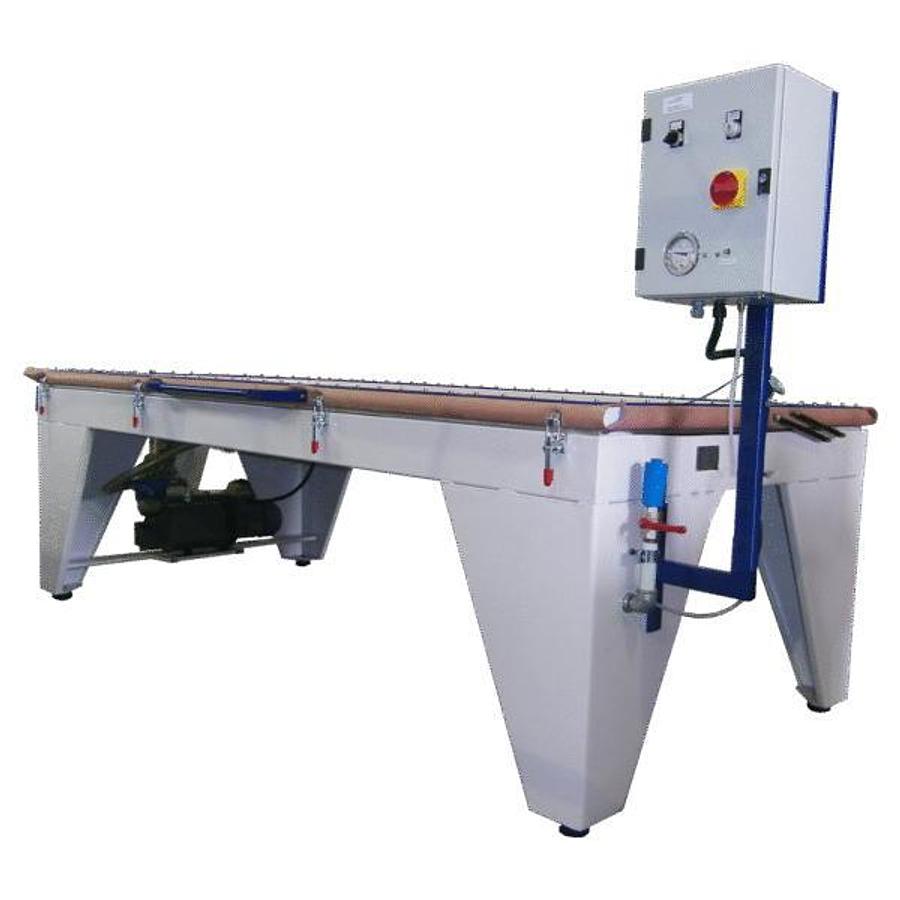

The Vacuum Light is a vacuum forming machine designed for ennobling with wood and/or laminates and for gluing cold-curved sheets. As part of the Vacuum series, it uses vacuum for coating and gluing applications on curved panels.

The Vacuum Light can be used for the creation of curved multilayer panels and the application of veneer on curved surfaces. It features an aluminum work surface with grooves for vacuum propagation and is supplied with one membrane.

The Vacuum Light is available in three working sizes, from 2360 x 1160mm to 3360 x 1160mm, with a maximum working height of 500mm in the central part of the machine.

Functions:

Creation of curved panels with multilayer sheets

Application of veneer on curved surfaces

Ennobling with wood and/or laminates

Gluing of cold-curved sheets

Final Products:

Veneered curved surfaces

Curved shaped panels for interior design

Shaped panels for tables

Shaped panels for desks

Useful Dimensions:

25/13: 2360 x 1160mm, maximum working height 500mm

30/13: 2860 x 1160mm, maximum working height of 500mm

35/13: 3360 x 1160mm, maximum working height of 500mm

The maximum working height refers to the central part of the machine.

Standard Equipment:

Aluminum work surface with grooves for vacuum propagation

Vacuum pump: 60m³

1 membrane

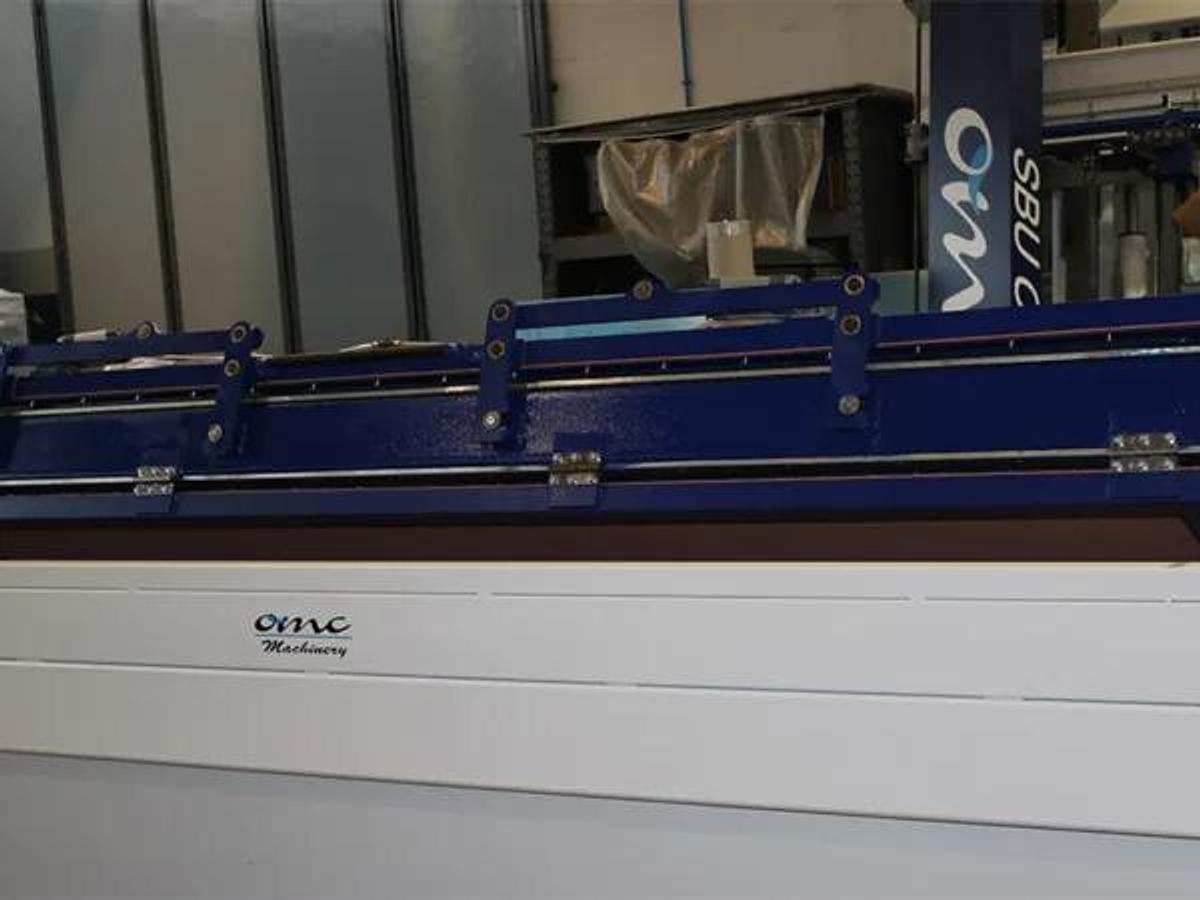

Gasket fixed to the membrane frame to avoid tearing when changing the mold

Optional Equipment:

The Vacuum Light can be equipped with:

Pneumatic membrane frame lifting system

Logic Control Digital Panel

Pneumatic membrane frame locking system

Drilling for fixing molds

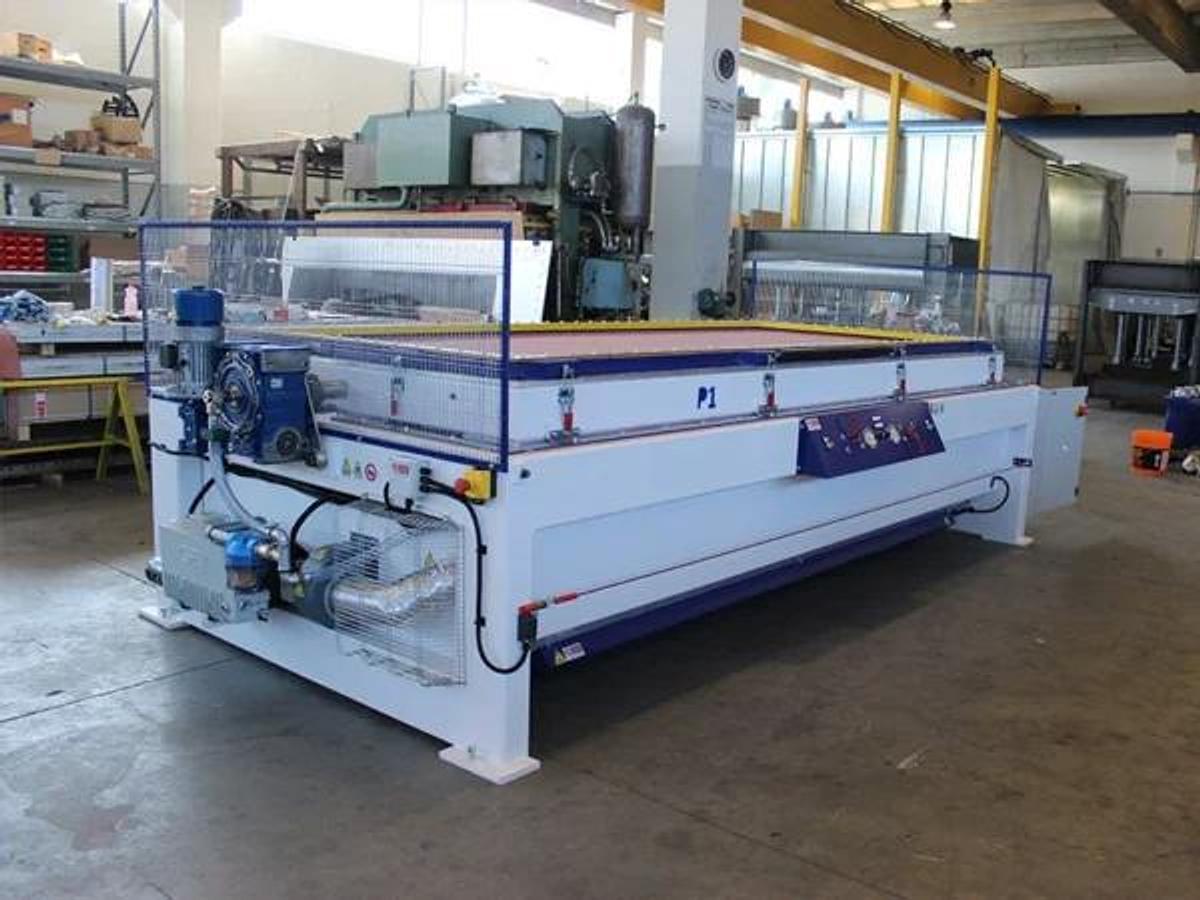

Protective nets on three sides with safety light barrier

Silicone membrane

Specifications

Condition

New
