Vacuum Easy

Description

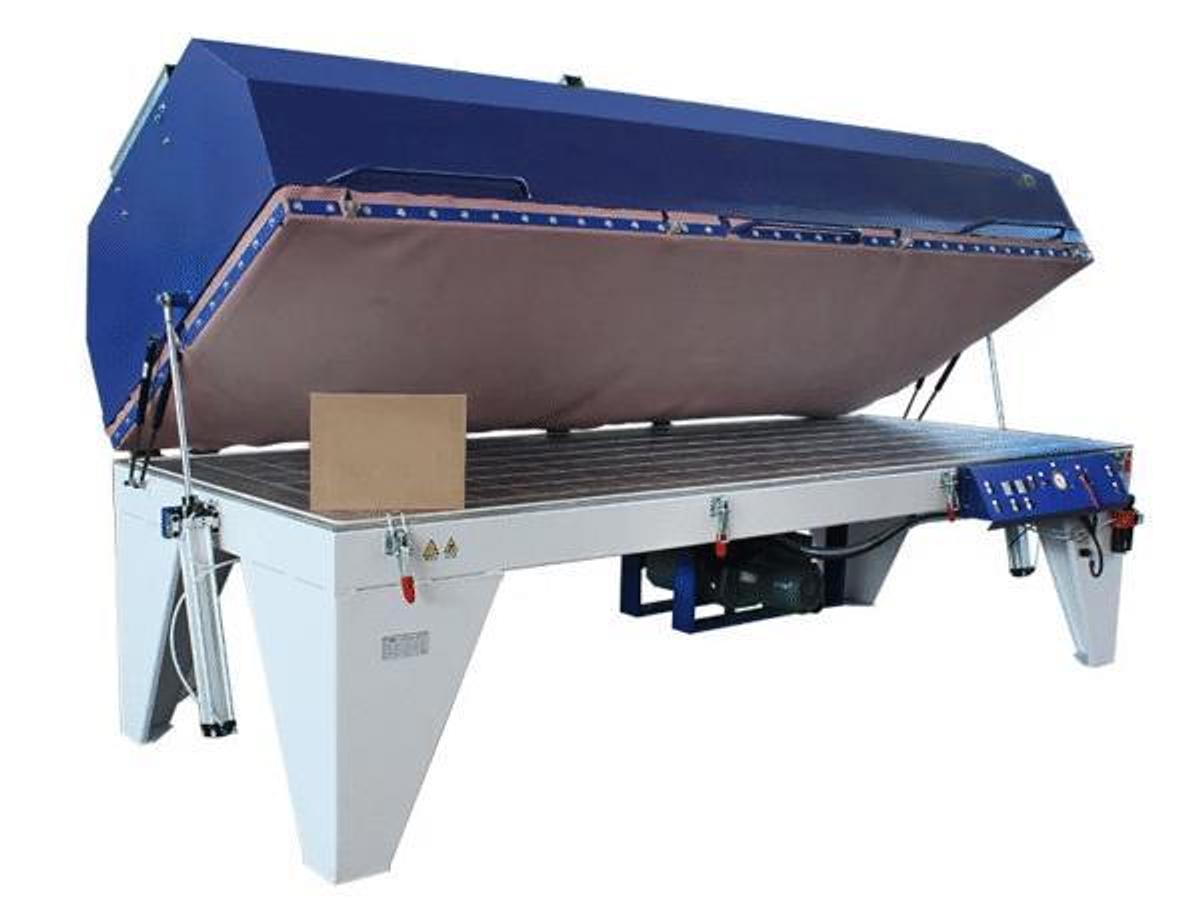

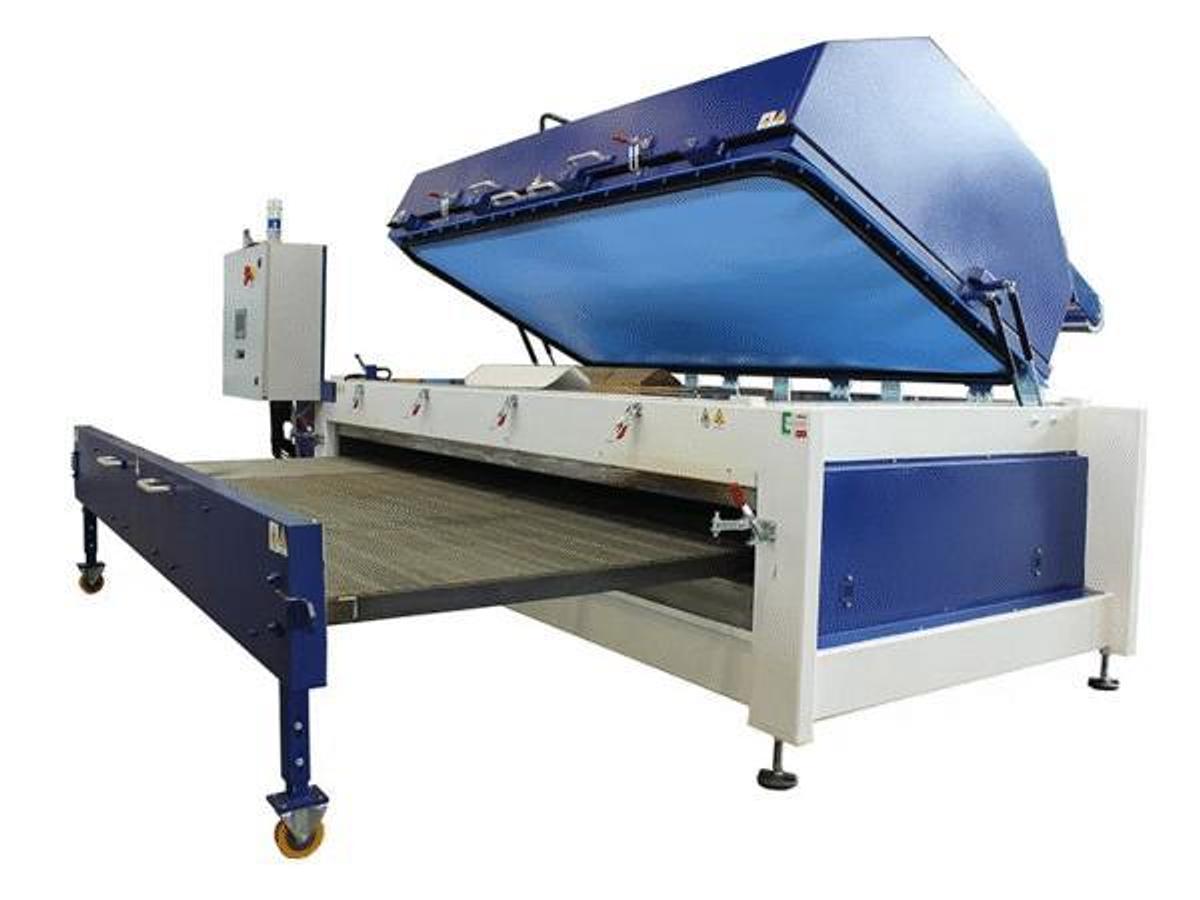

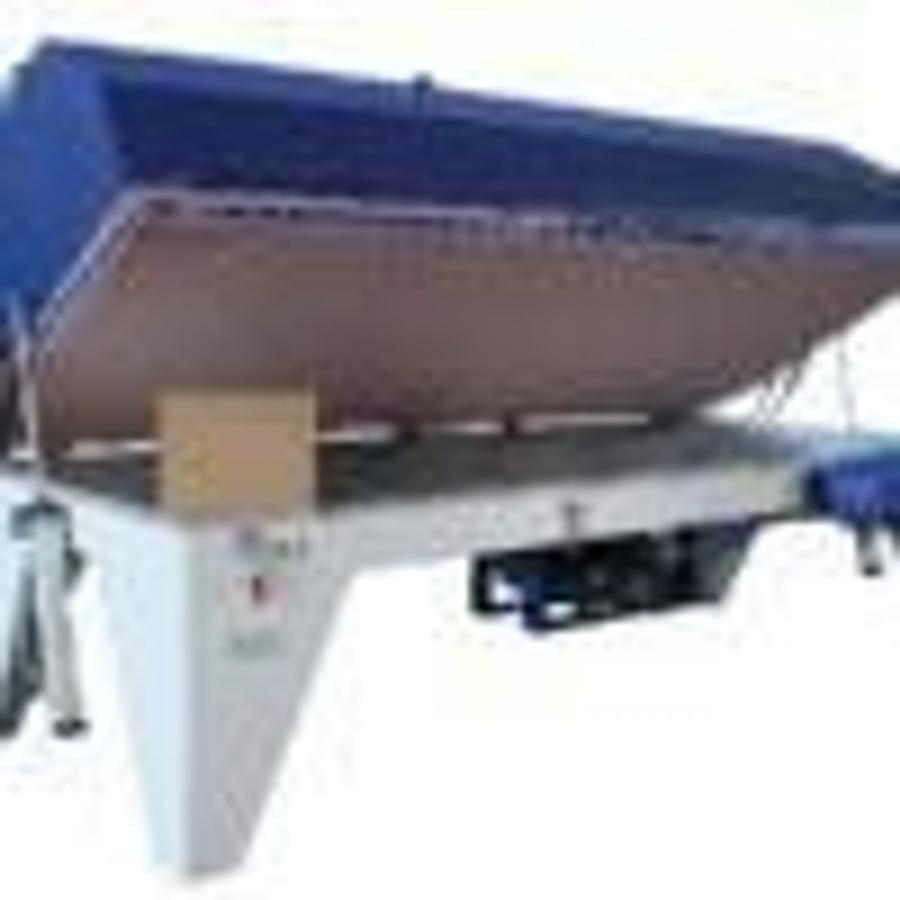

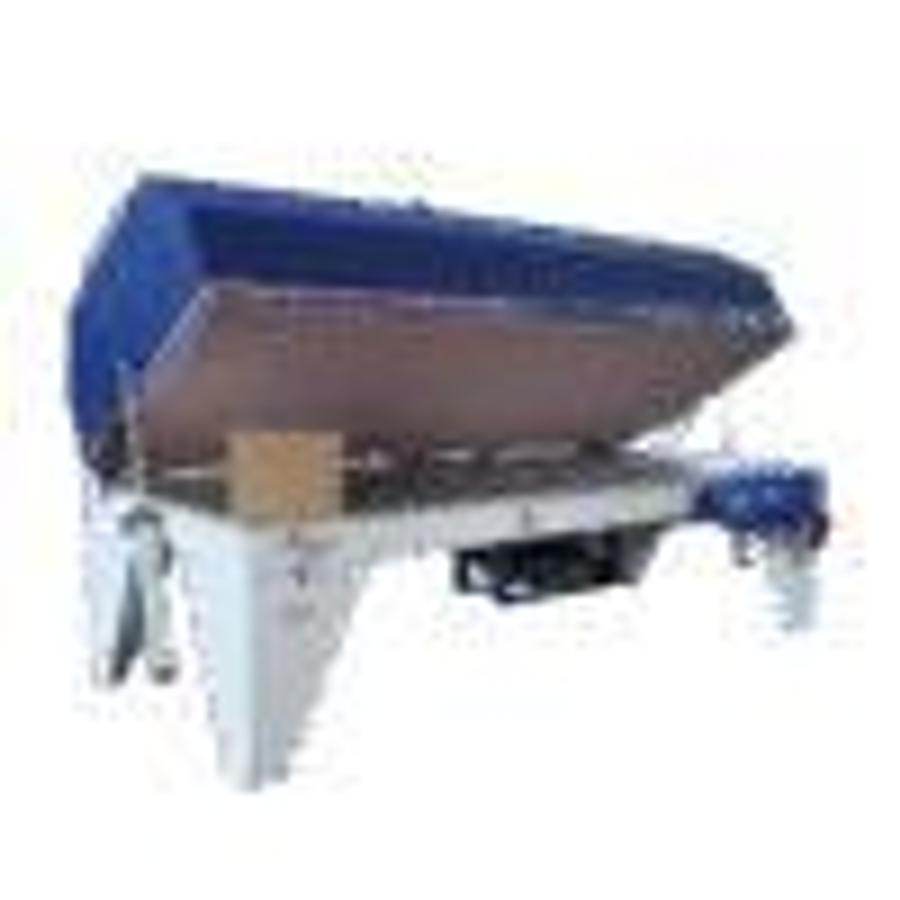

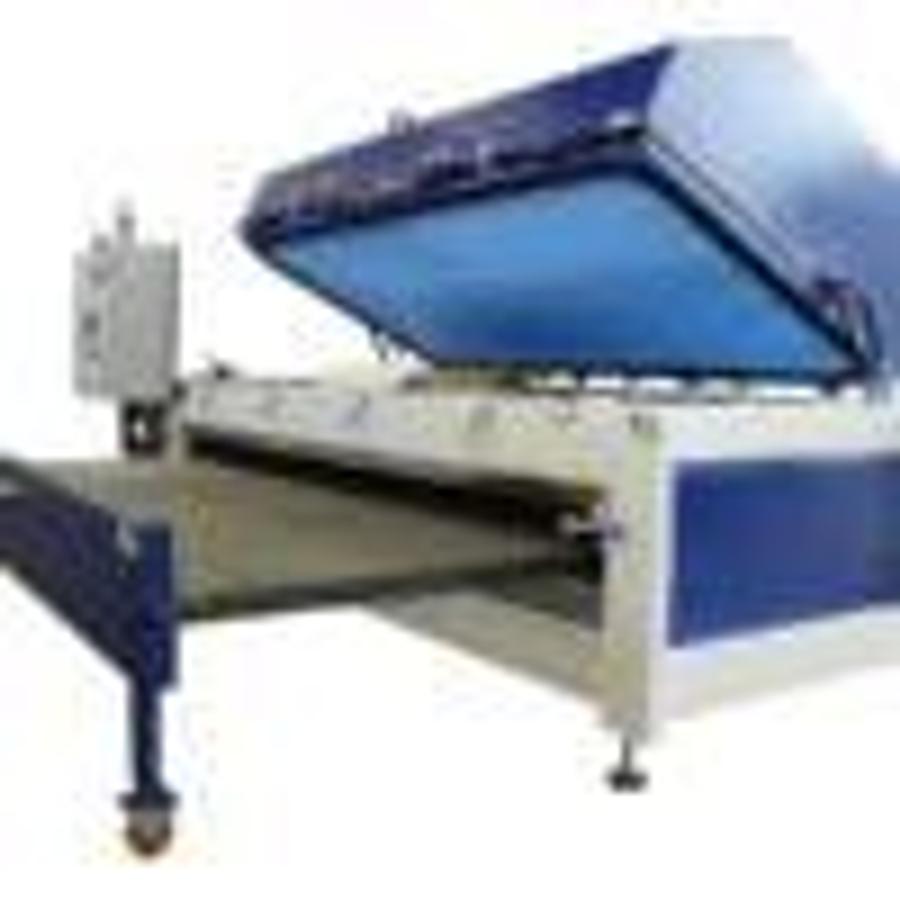

The Vacuum Easy is a hot vacuum forming machine with a hood, designed for ennobling with wood and/or laminates and for gluing curved sheets. As part of the Vacuum series, the machine uses vacuum and heat for coating and gluing curved panels.

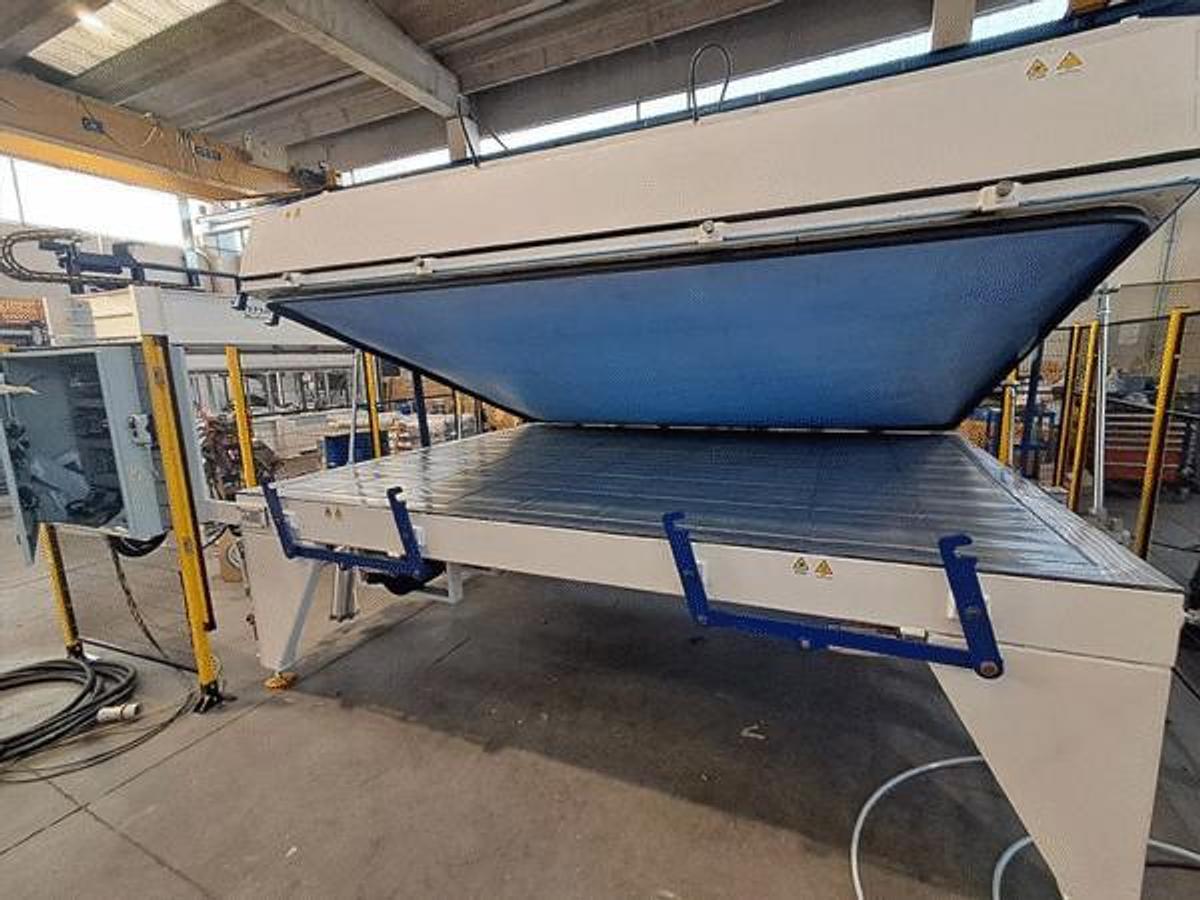

The Vacuum Easy can be used to create curved multilayer panels and apply veneer to curved surfaces. The machine features an aluminum work surface with grooves for vacuum propagation, a 60m³ vacuum pump, and one membrane.

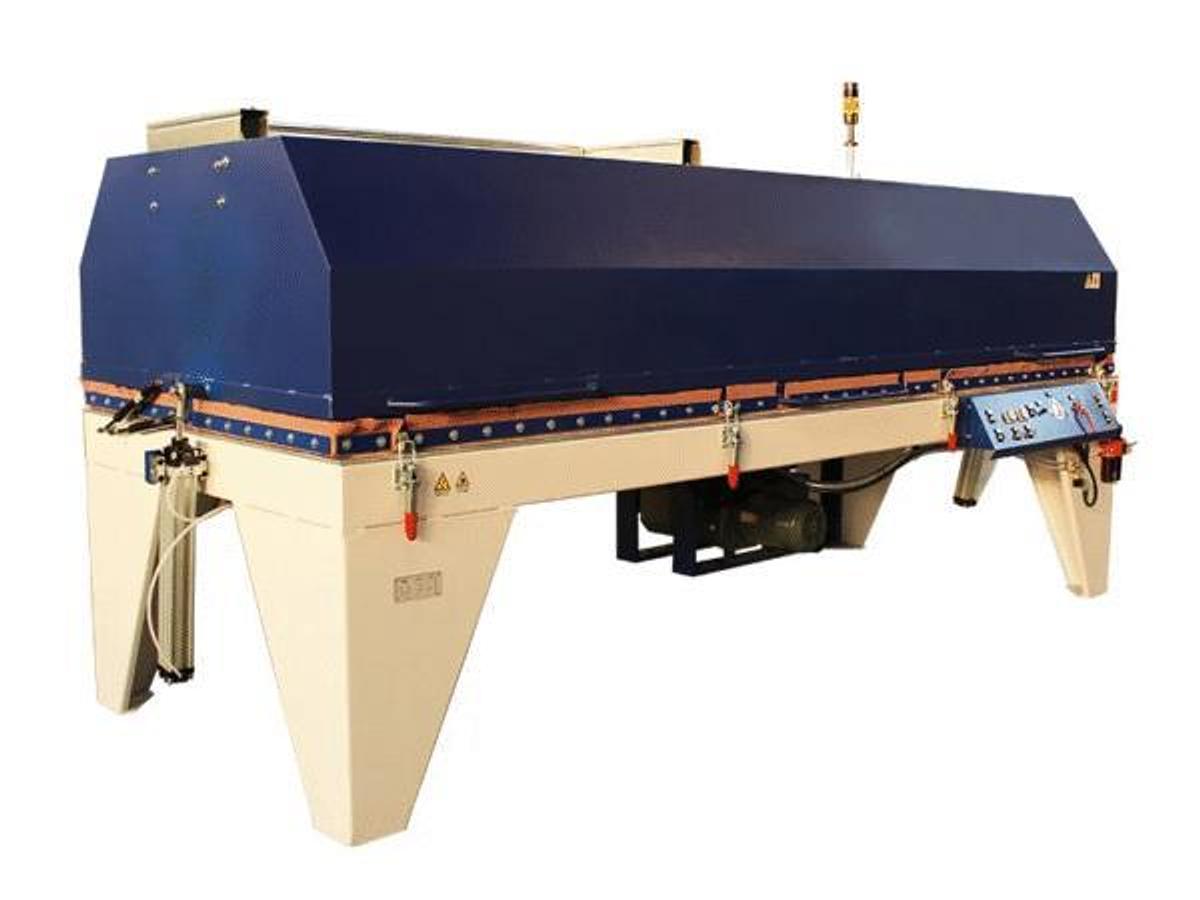

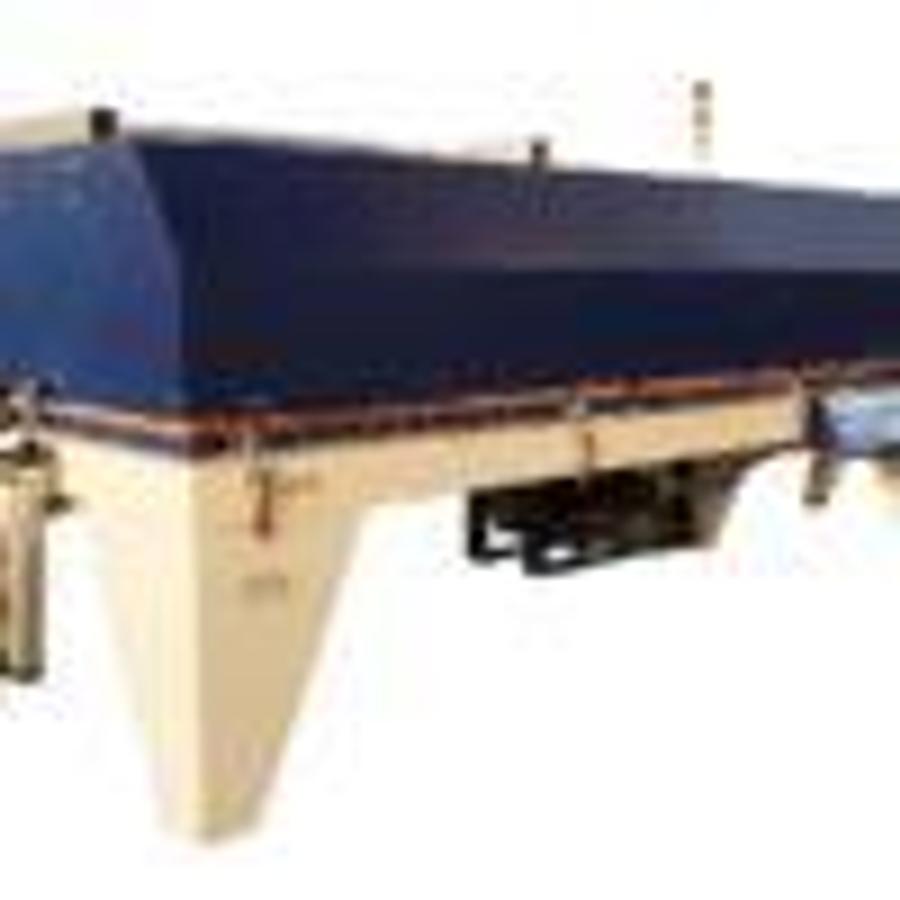

Heating on the Vacuum Easy is provided by an upper hood equipped with ceramic resistances and a fan for uniform temperature distribution. The system has a maximum temperature of 110°C.

Functions:

Creation of curved panels with multilayer sheets

Application of veneer on curved surfaces

Ennobling with wood and/or laminates

Gluing of curved sheets

Final Products:

Curved shaped panels for the nautical sector

Curved shaped panels for interior design

Shaped panels for tables

Shaped panels for desks

Useful Dimensions:

25/13: 2360 x 1160mm, maximum working height 500mm

30/13: 2860 x 1160mm, maximum working height 500mm

35/13: 3360 x 1160mm, maximum working height 500mm

The maximum working height refers to the central part of the machine.

Standard Equipment:

Aluminum work surface with grooves for vacuum propagation

Vacuum pump: 60m³

1 membrane

Upper heating hood

Ceramic resistances

Fan for uniform temperature distribution

Maximum temperature: 110°C

Gasket fixed to the membrane frame to avoid tearing when changing the mold

Optional Equipment:

The Vacuum Easy can be equipped with:

Pneumatic membrane frame lifting system

Pneumatic hood lifting system

Logic Control digital panel

Pneumatic membrane frame locking system

Drilling for fixing molds

Specifications

Condition

New
