Description

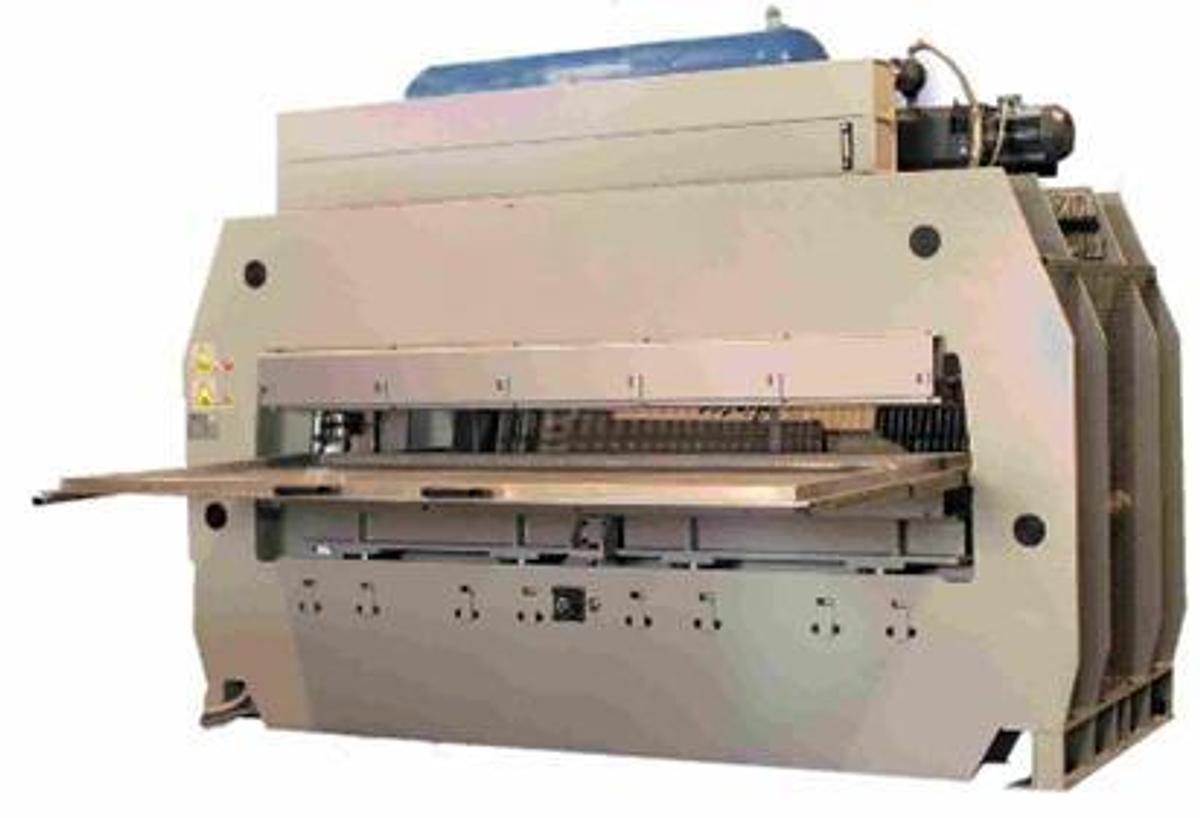

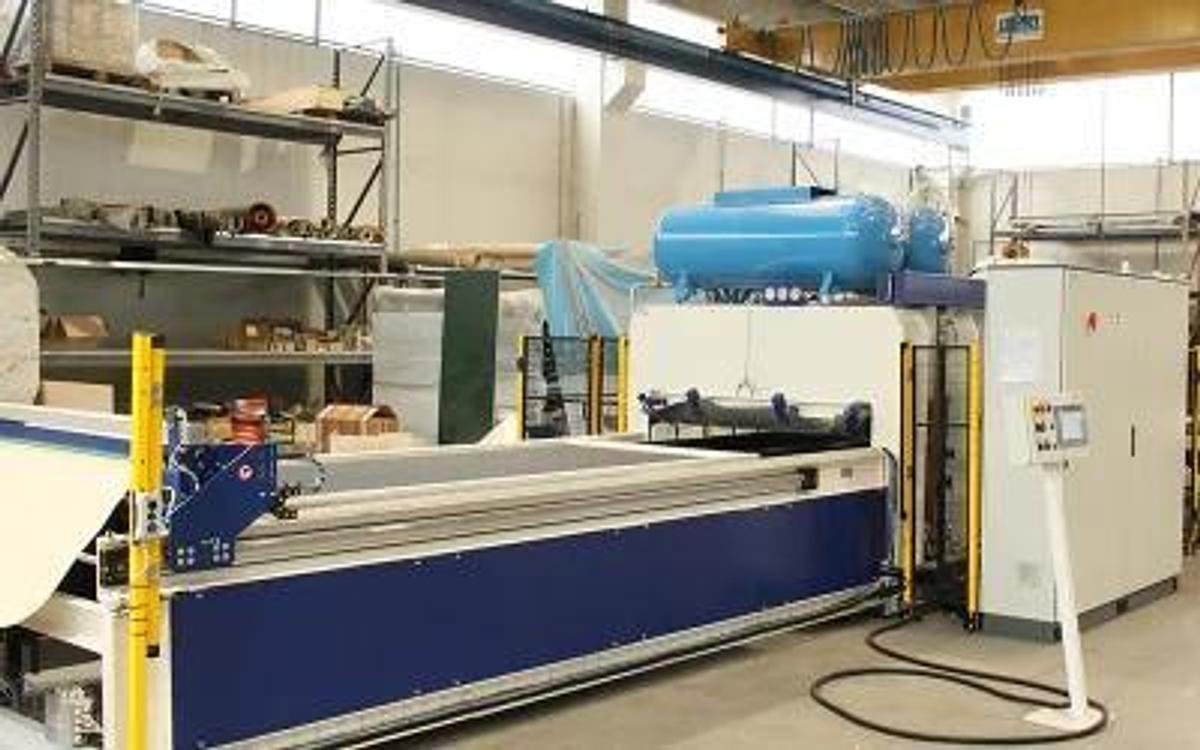

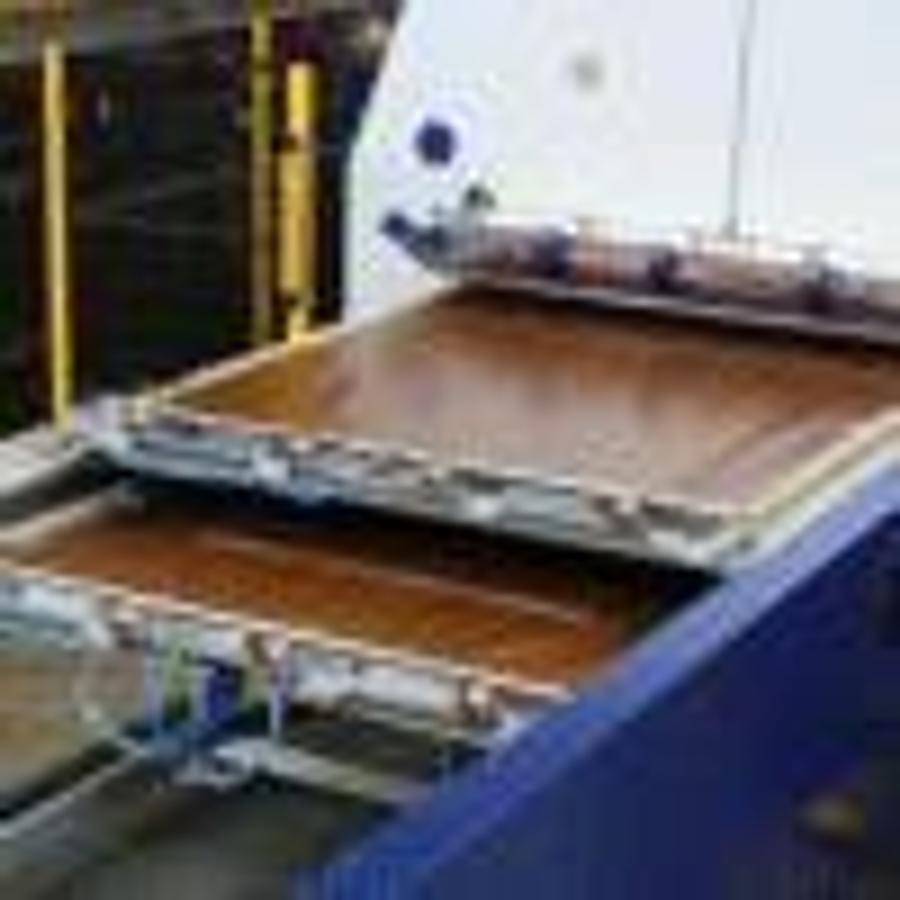

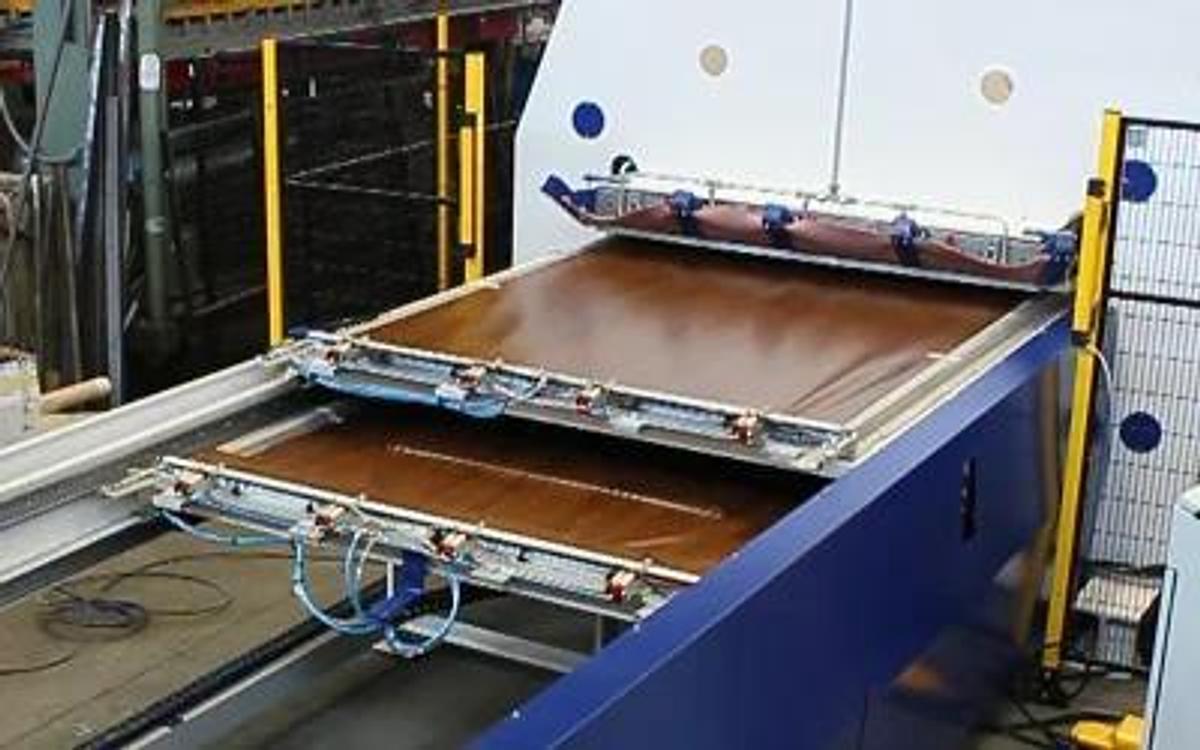

The Airtec CM Membrane Press is a high-performance vacuum membrane press designed for applying 3D thermoforming films and wood veneer to shaped panels and furniture components. Combining heat, air pressure, and vacuum technology, this industrial press delivers consistent, high-quality results while supporting high-volume production for furniture manufacturers, cabinet makers, and architectural millworker shops.

Designed to process complex three-dimensional surfaces, the Airtec CM Membrane Press applies PVC, PPE, ABS, and other thermoforming films with or without a membrane, depending on the application. It also excels at applying a wood veneer to shaped surfaces using its integrated membrane system, making it a versatile solution for a wide range of decorative panel manufacturing.

The Airtec CM Membrane Press features a heavy-duty steel worktable, digital touchscreen controls, and a high-trust pneumatic system that allows coatings to conform to intricate profiles with exceptional accuracy. Equipped with diathermy oil heating, a powerful vacuum system, and a quick-release membrane mechanism, the machine delivers reliable performance while minimizing setup and production time.

Available in multiple sizes with one or two manually loaded trays, the Airtec CM Membrane Press is built to meet the demands of modern manufacturing. Its durable construction, advanced controls, and extensive optional accessories make it an ideal solution for producing premium thermoformed and veneered components.

Key Features:

  • Designed for 3D thermoforming and veneer applications
  • Processes PVC, PPE, ABS, and other thermoforming films
  • Suitable for one-sided wood and veneer pressing
  • High pneumatic pressure for complex shaped components
  • Heavy-duty steel drilled worktable
  • Digital touchscreen control panel
  • Diathermal oil heating system
  • Quick-release membrane system
  • Industrial vacuum system for consistent bonding
  • Built for high-volume production

    • Available Models:

    Airtec CM 1

  • One manually loaded tray
  • Manual loading from the long side

    • Airtec CM 2

  • Two manually loaded trays
  • Manual loading from the long side

    • Working Sizes

    Airtec CM 16/08

  • Working Area: 1600 x 800 mm
  • Working Pressure: 4 + 1 kg/cm²

    • Airtec CM 24/09

  • Working Area: 2400 x 900 mm
  • Working Pressure: 6 + 1 kg/cm²

    • Applications

    The Airtec CM Membrane Press is ideal for producing:

  • Cabinet doors
  • Kitchen cabinet doors
  • Bathroom vanity doors
  • Furniture doors
  • Decorative wall panels
  • Thermoformed furniture components
  • Veneered panels
  • Shaped MDF panels
  • Interior architectural components
  • Custom furniture parts

    • Advanced Components:

  • Heavy-duty drilled steel worktable
  • Digital touchscreen control panel
  • Diathermy oil heating system
  • High-capacity pneumatic pressure system
  • Industrial vacuum pump with 500-litre tank
  • 500-litre compressed air tank
  • Proportional pressure control valve
  • Quick-release membrane mounting system
  • Heavy-duty ox-cut machine structure
  • Fully machined steel work surfaces

    • Standard Equipment:

  • Rubber membrane
  • Diathermal oil heating system
  • Proportional control valve
  • 500-litre compressed air tank
  • Vacuum pump with 500-litre vacuum tank

    • Optional Equipment:

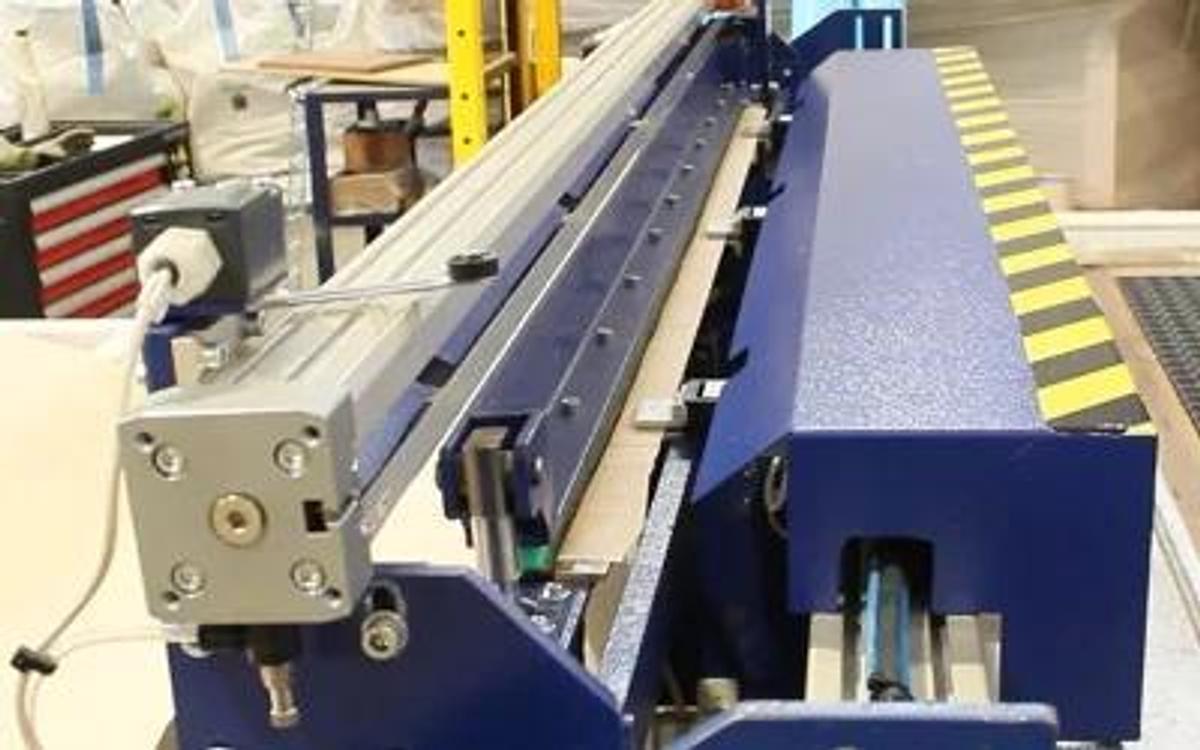

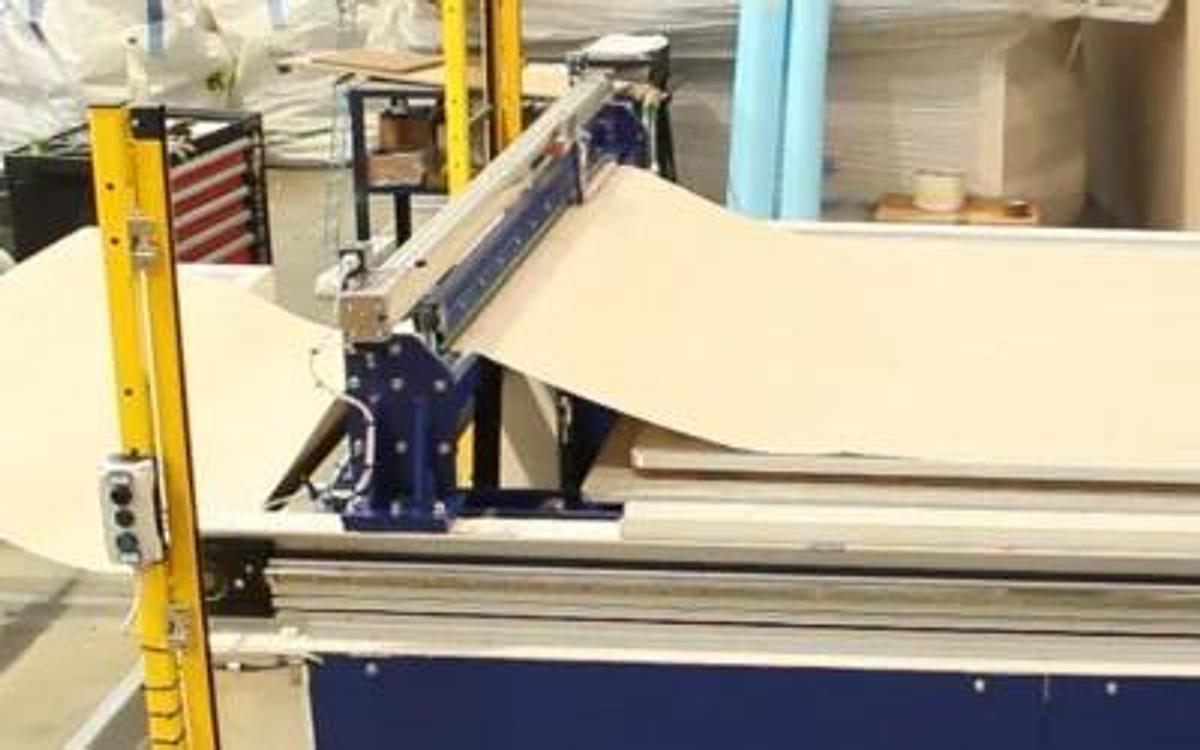

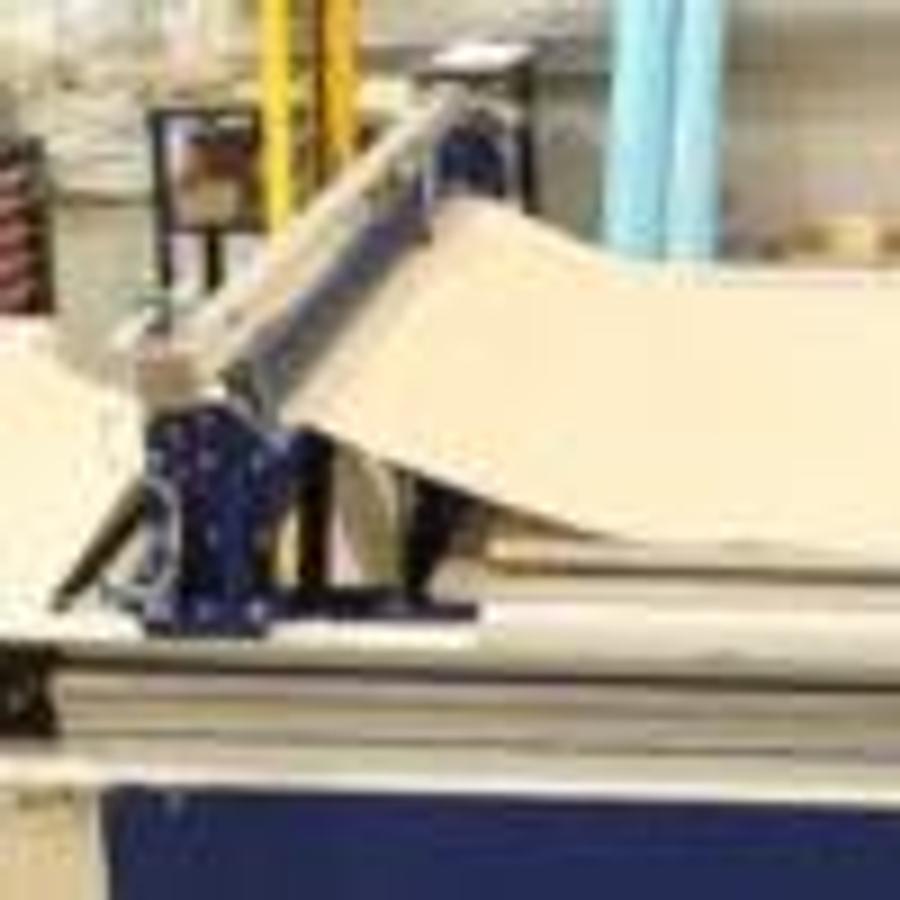

  • PVC unwinding cart with manual cutting
  • PVC unwinding cart with pneumatic cutting
  • Magnetic or electronic JIG systems
  • Antistatic brush
  • High Gloss PVC processing system
  • Surface cleaning system for glossy PVC
  • Modular chamber (90mm or 180mm)
  • PVC granulator
  • PVC tensioning device
  • Automatic PVC scanning and cutting system
  • Rotating 10-coil PVC storage system
  • Suction cup unloaded with motorized roller conveyor

    • The Airtec CM Membrane Press is an ideal solution for manufacturers seeking fast, reliable, and precise thermoforming and veneer pressing for furniture and architectural components. Combining advanced vacuum technology, high pneumatic pressure, and intelligent controls, the Airtec CM Membrane Press delivers exceptional production efficiency and professional-quality finishes for demanding industrial applications.

    Show All

    Specifications

    ConditionNew
