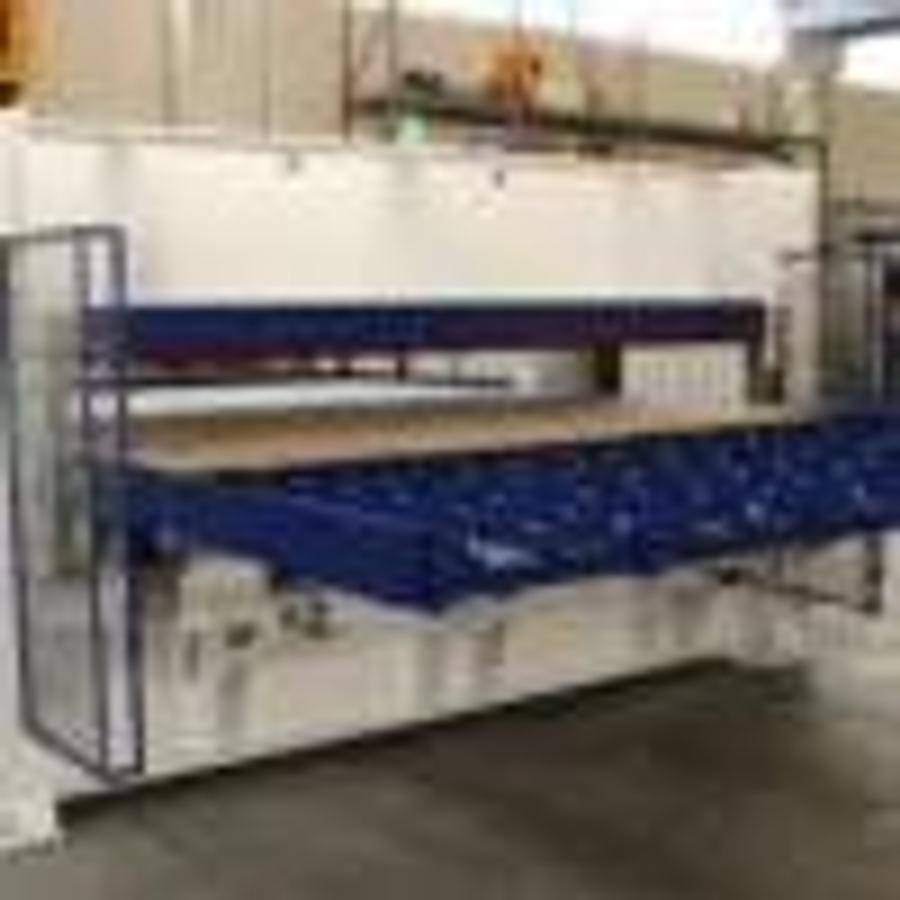

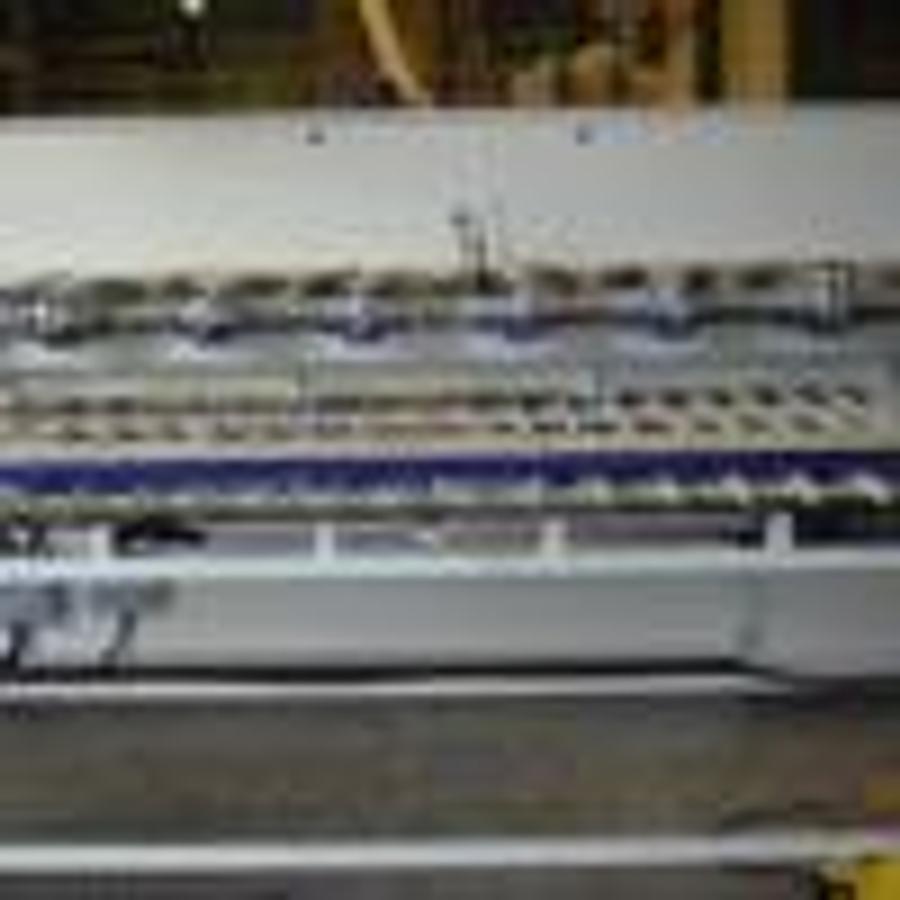

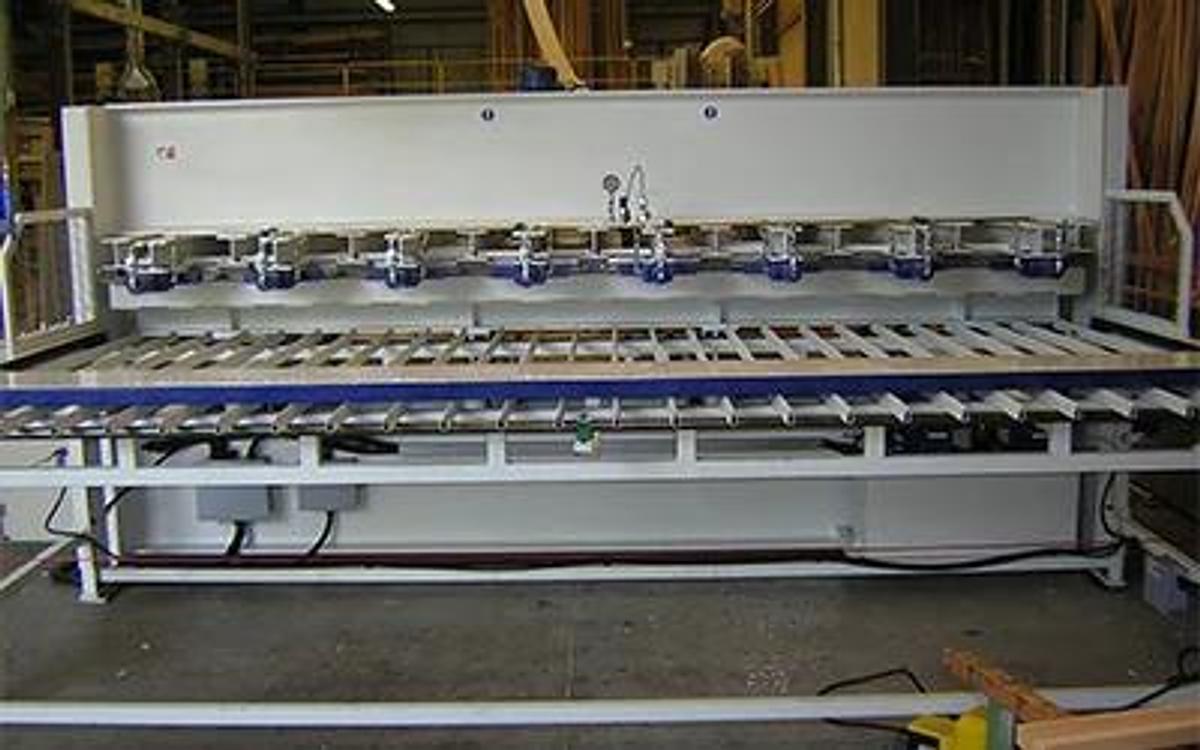

PLS Model Listellari Press

PLS Model Listellari Press

or
Call +1 437 475 2301

Description

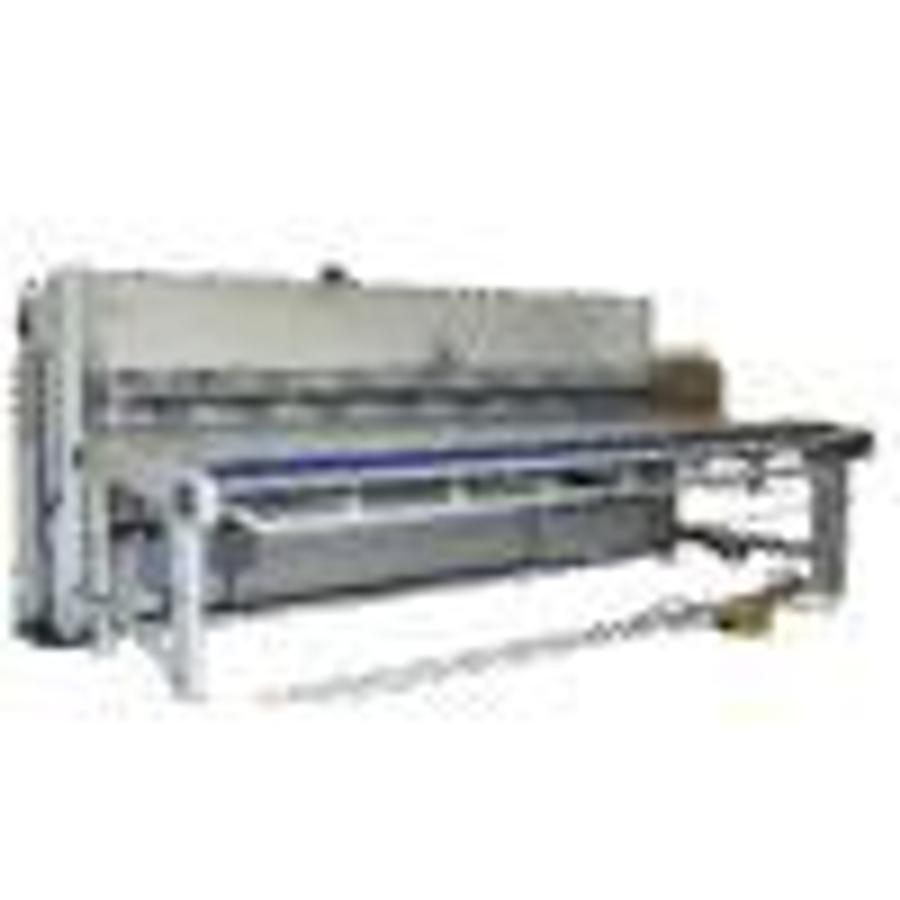

The PLS Model Listellari Press is designed for the production of continuous plank panels by gluing wood strips. Available with either manual or automatic loading, the press can be configured according to different production requirements.

The PLS Model Listellari Press is available as the PLS CM, featuring manual loading onto a motorized loader operated by a foot switch, or the PLS CA which features automatic loading using a motorized comb loader.

The PLS Model Listellari Press is equipped with horizontal thrust cylinders and a rear clamping device that allows the material to be locked and unlocked. This enables the operator to add additional slats and produce a panel larger than the pressing area.

Functions:

  • Production of panels by gluing strips
  • Laminate and veneer application on the PLIsm model by removing the wheeled unloading table and manually loading the workpieces

    • Final Products:

  • Various types of plank panels
  • Nobled panels with the PLIsm model

    • Available Models:

    PLS CM

  • Manual loading onto a motorized loader
  • Loader operated by foot switch

    • PLS CA

  • Automatic loading
  • Motorized comb loader

    • Working Sizes:

    PLS 25/13

  • Working Area: 2500 x 1300mm
  • Thrust: 1.5-5 kg/cm²

    • PLS 30/13

  • Working Area: 3000 x 650mm
  • Thrust: 1.5-5 kg/cm²

    • PLS 35/13

  • Working Area: 2350 x 850mm
  • Thrust: 1.5-5 kg/cm²

    • Standard Equipment:

  • Horizontal thrust cylinders
  • Rear clamping device for locking and unlocking materials;
  • Pulse / automatic loader for PLS model
  • Comb loader for PLS CA model
  • Wheeled or motorized unloader
  • Pneumatic cylinders to facilitate material detachment

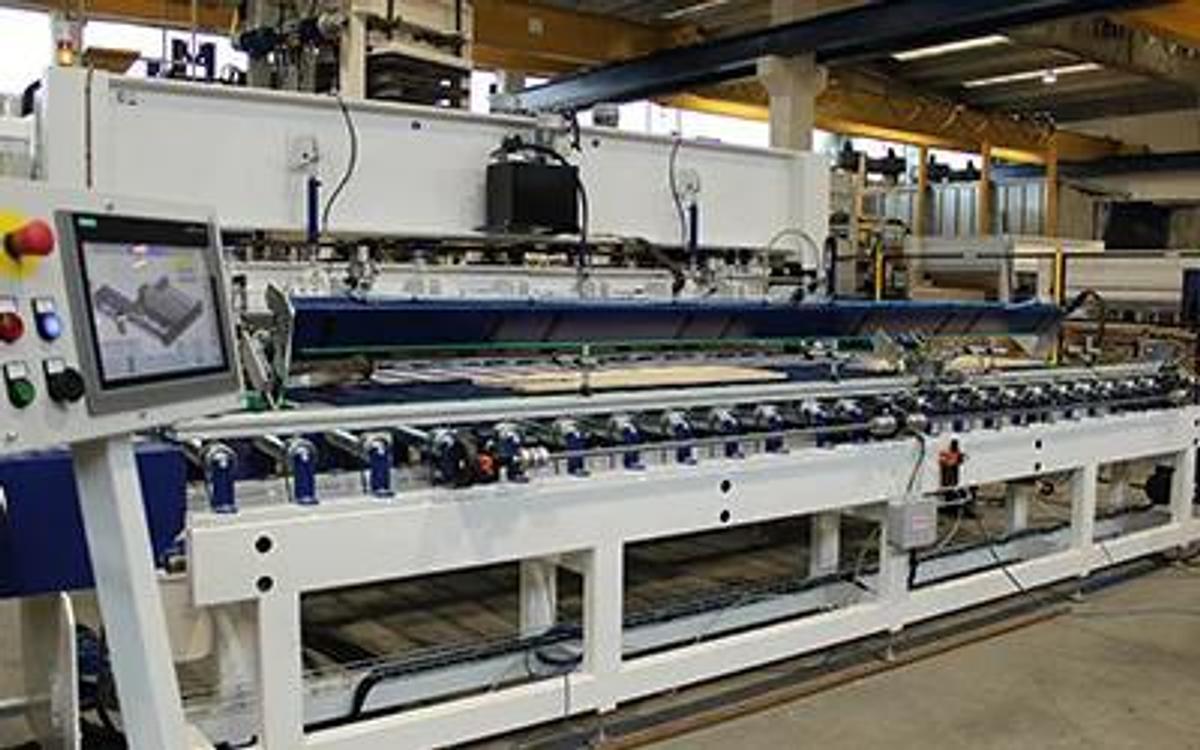

  • Digital touchscreen control panel with PLC
  • Water or diathermal oil heating

    • Optional Equipment:

    PLS CA

  • Horizontal chain loader
  • Automatic gluing machine with fixed or variable width
  • Single or multi-track automatic feeder with slat blocking strokes
  • High Frequency Generator
  • Automatic panel unloader with lifting platform or other palletization systems

    • PLIsm and PLS Economy

  • Manual Gluer

    • The PLS Model Listellari Press provides manual or automatic loading configurations for the production of continuous plank panels, with working sizes and optional equipment available for different production requirements.

    Show All

    Specifications

    ConditionNew
