Hinge Press

Description

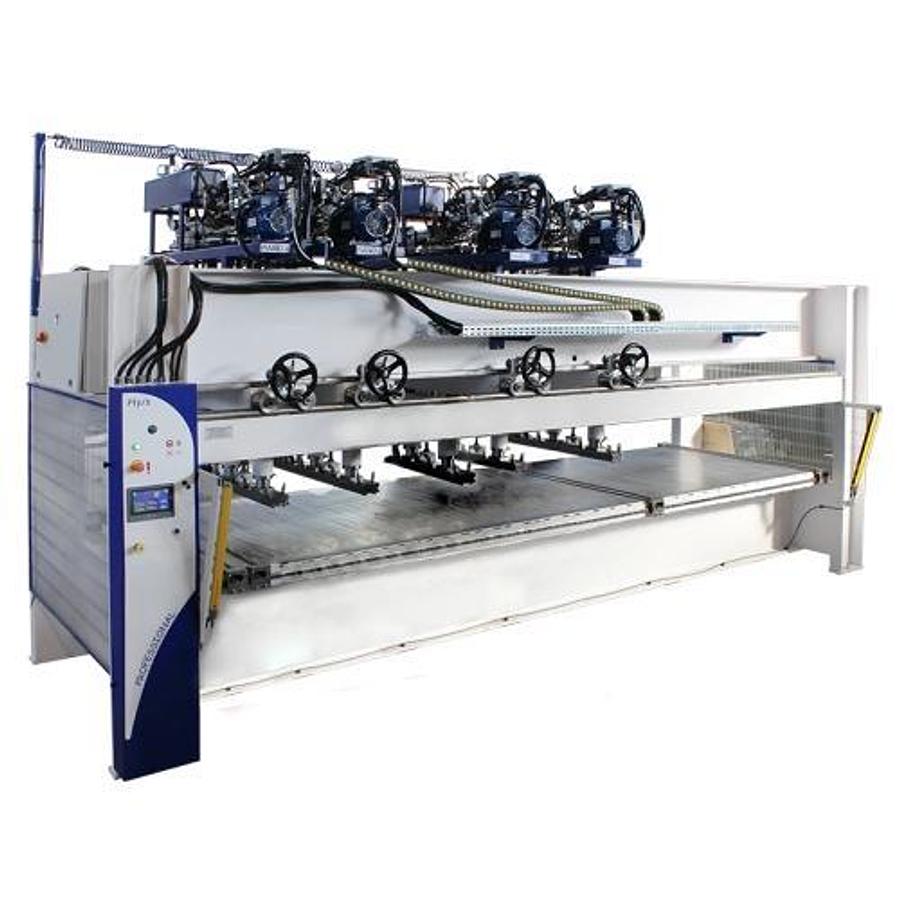

The Hinge Press is designed for the application of hinges in the production of wooden crates. It features adjustable piston-holder crossbars that can be manually moved along the length of the machine using a hand wheel.

The upper plane allows for retractable hinge insertion during pressing, while a rack system maintains parallelism during ascent and descent. Steel guides allow each crossbar to be manually positioned along the length of the machine.

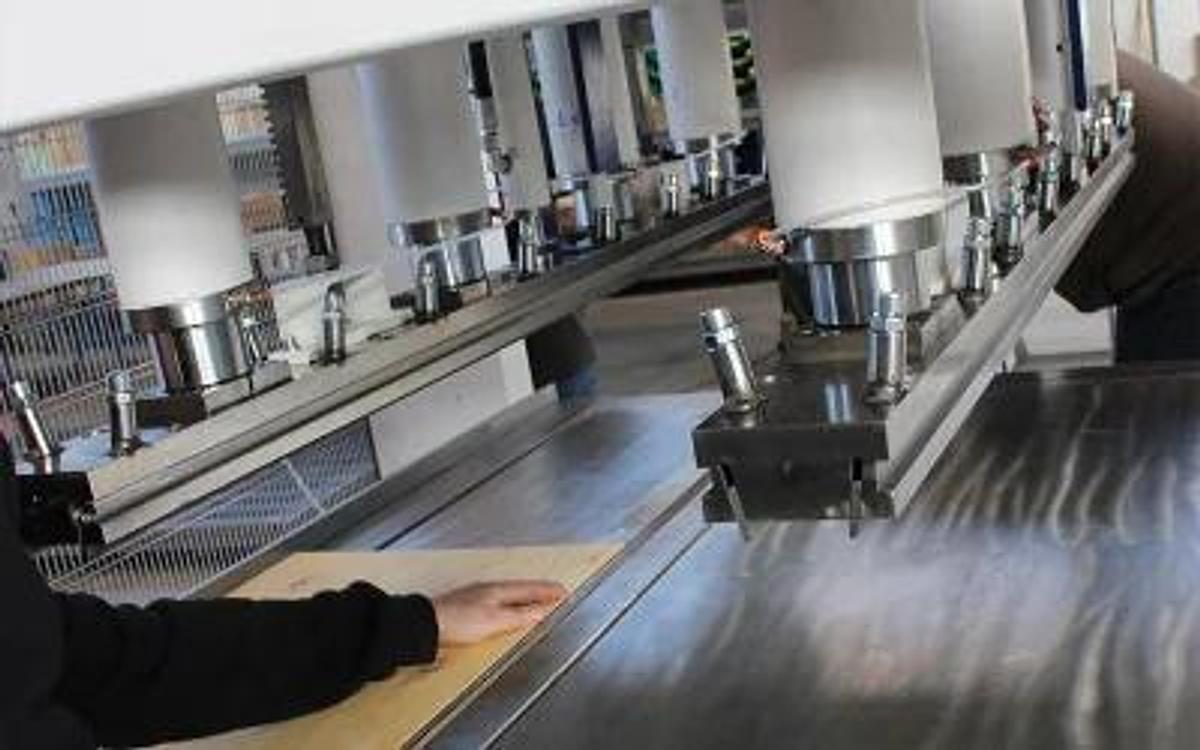

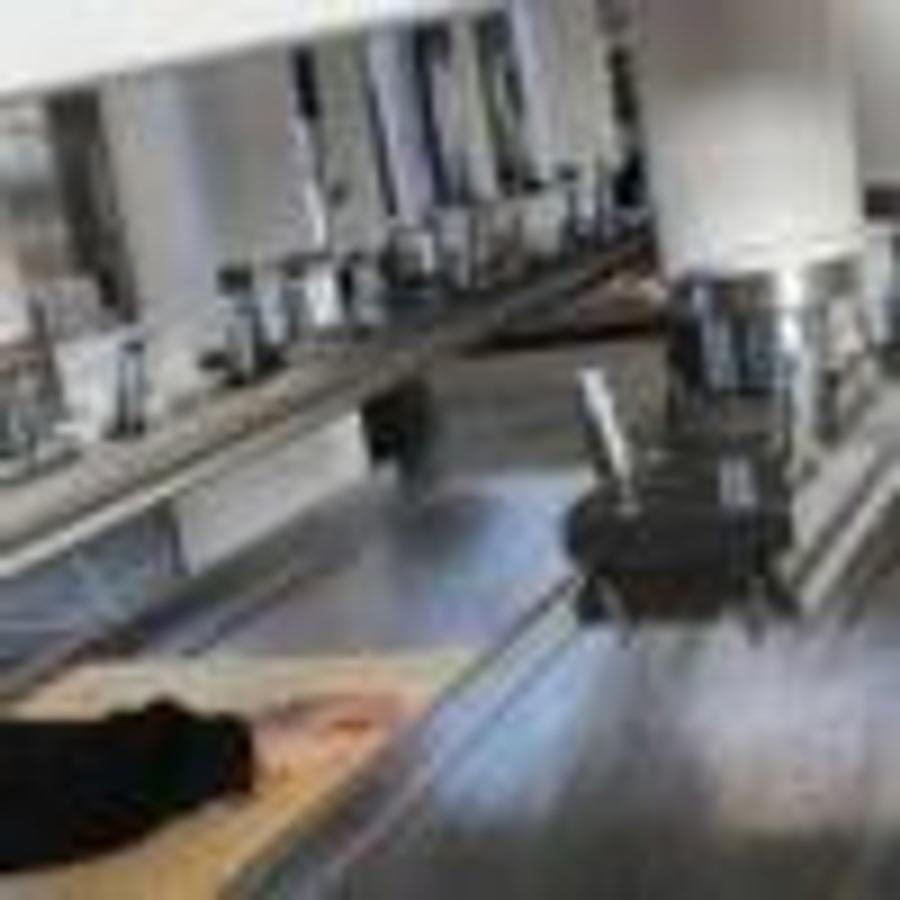

Side guides with a sled support internal stops on the work surface for positioning the plywood to be spliced.

Key Features:

Designed for hinge application in wooden crate production

Manually adjustable piston-holder crossbars

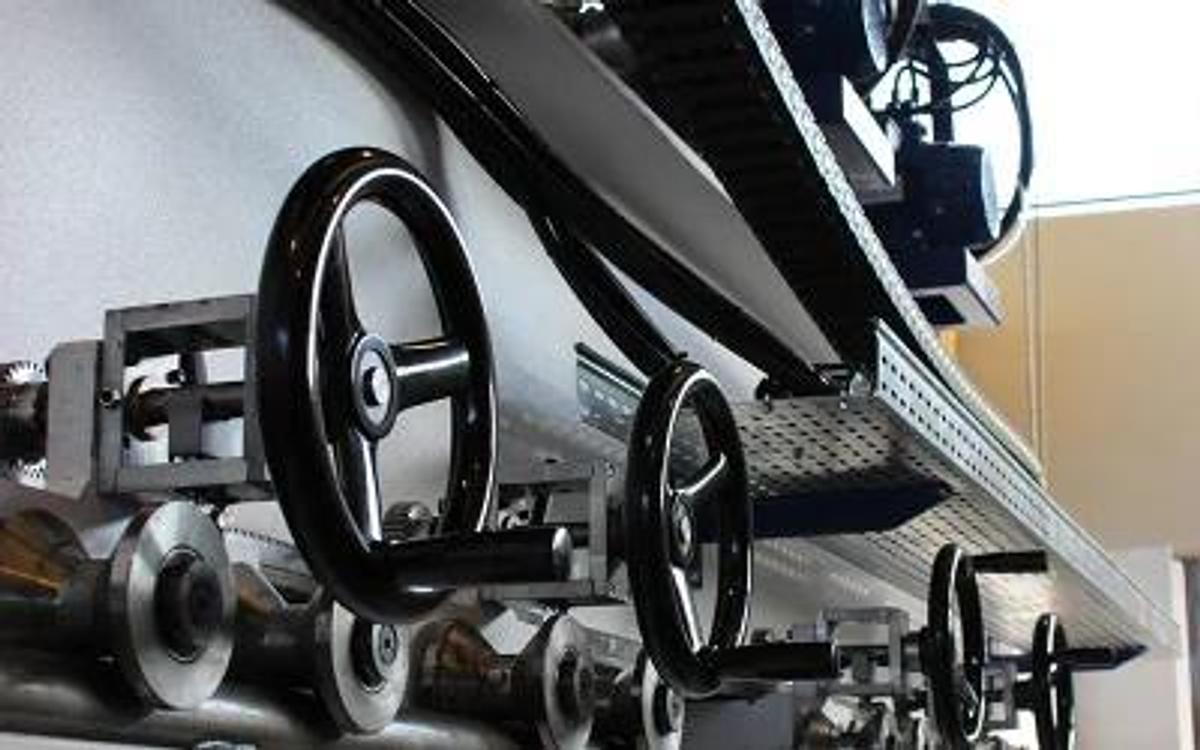

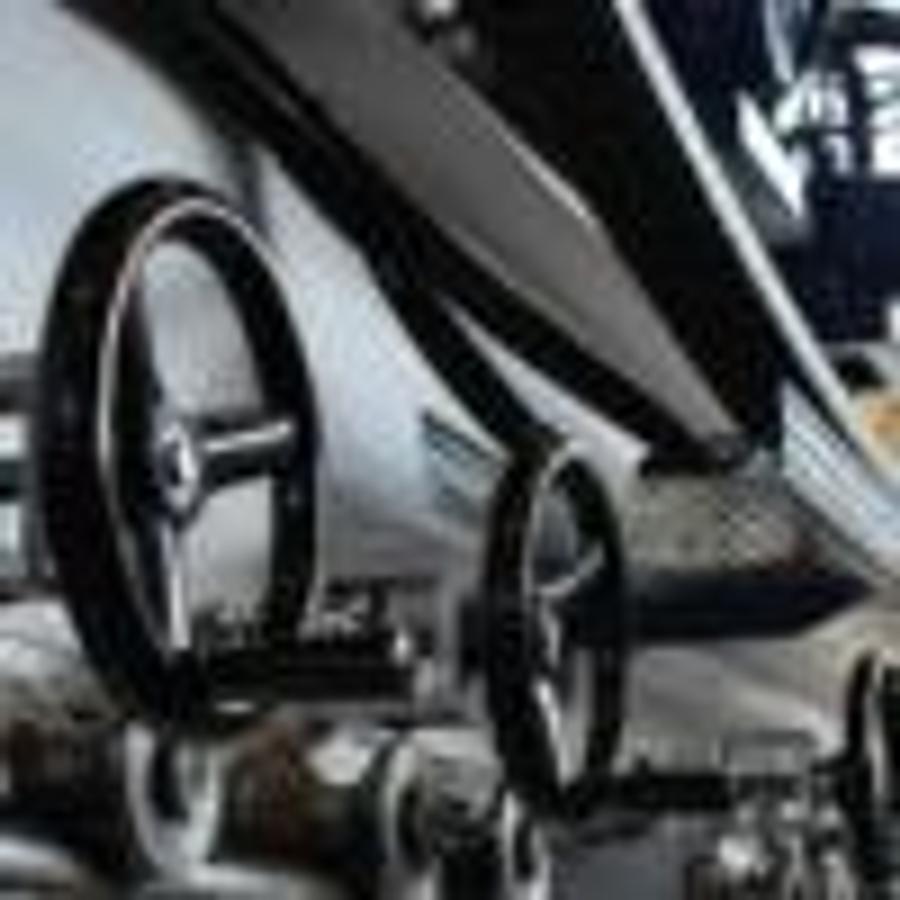

Handwheel adjustment along the machine length

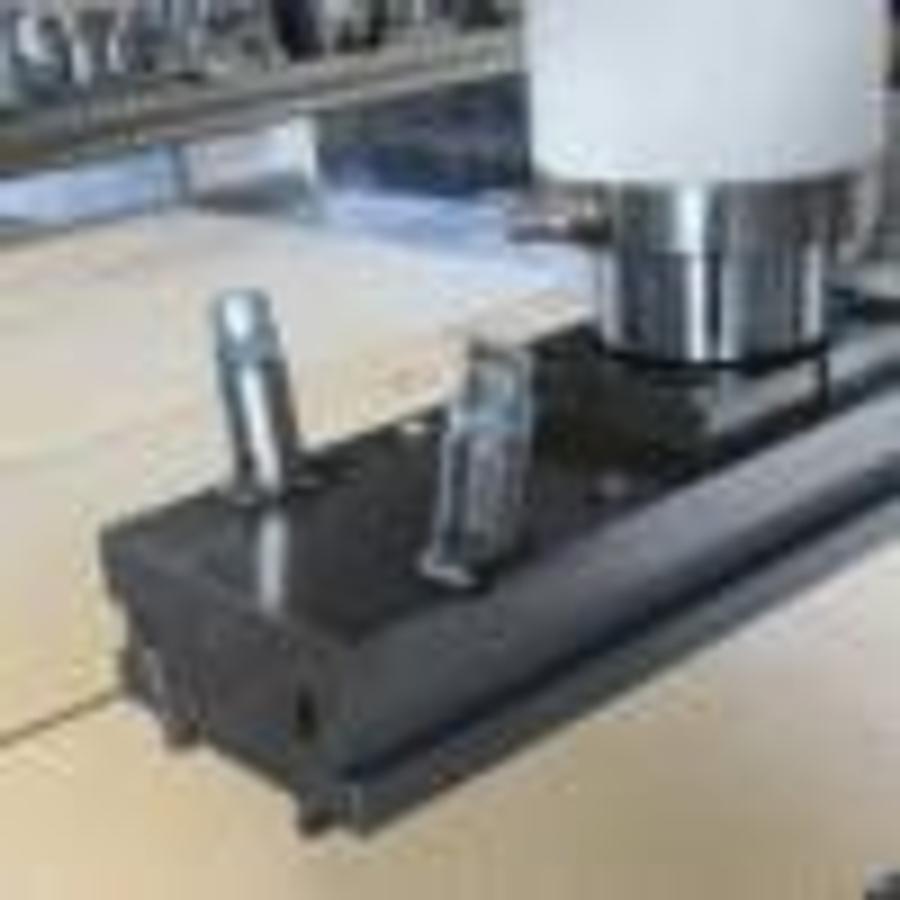

Upper plane for retractable hinge insertion during pressing

Rack system to maintain parallelism during ascent and descent

Steel guides for manual movement of each crossbar

Side guides with sled for supporting internal stops

Press Configuration:

Upper Plane

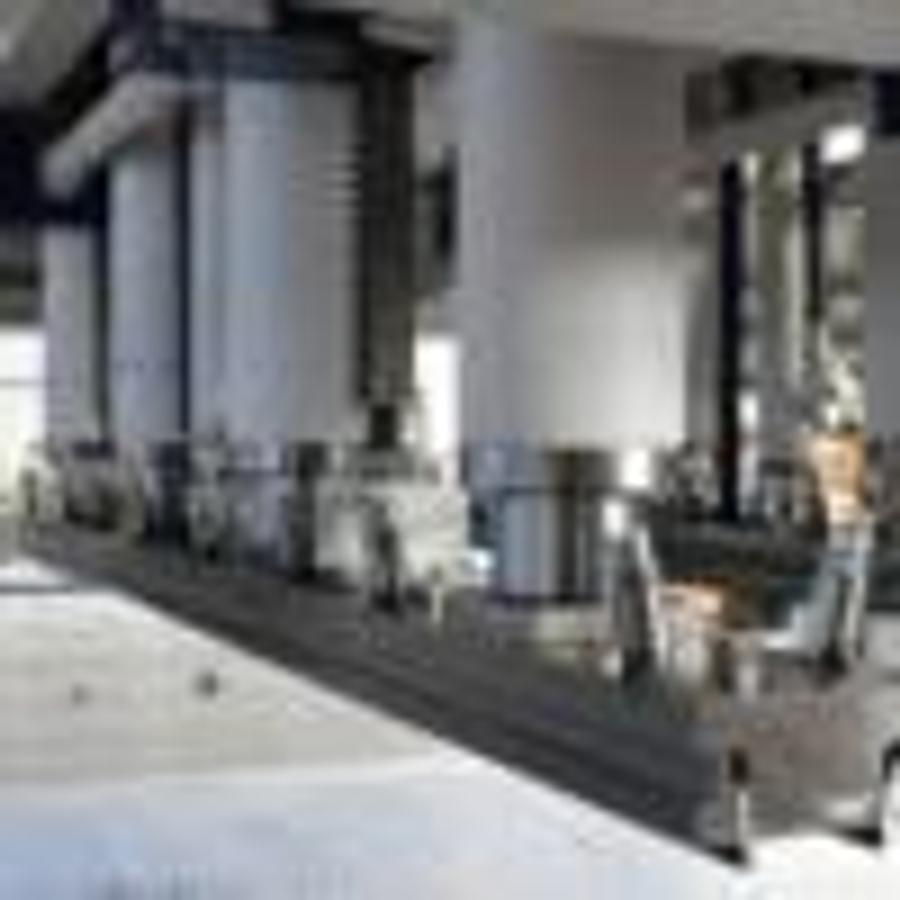

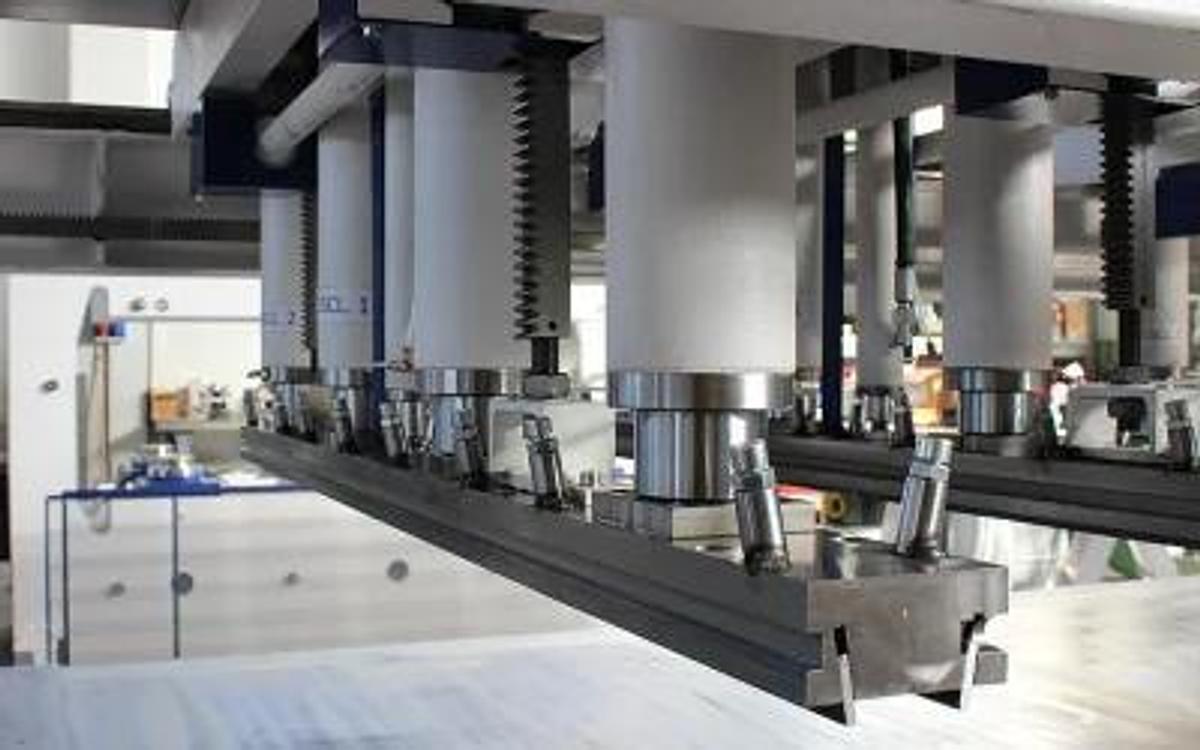

4 piston-holder crossbars

Manually adjustable over a length of 5000mm

4 press pistons per crossbar

Lower Plane

Covered with sheet metal

Specifications

Condition

New
