Description

motorized two side press system that would have two loading – unloading trays for increasing the vacuuming speed.

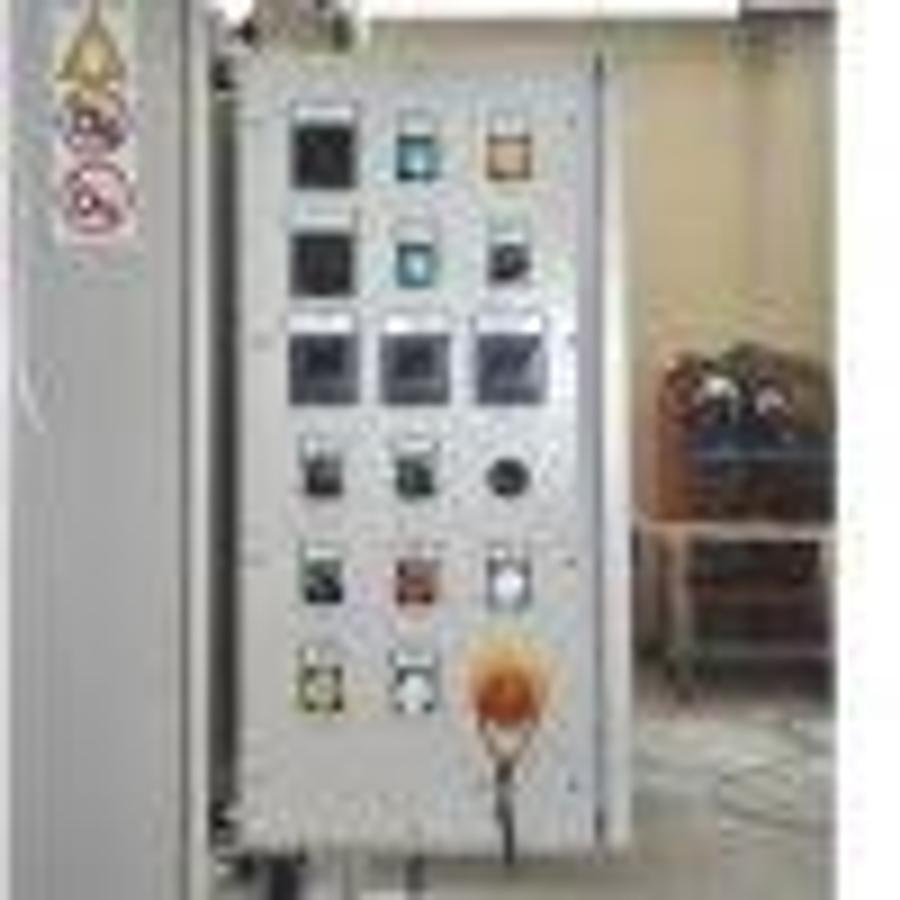

Air Vacuum Forming Presses with Loading Unloading Trays feature a motorized two-side press system with dual loading and unloading trays to significantly increase vacuuming speed.

While one tray is actively pressing, the second tray can be prepared with products for the next cycle. This smart workflow minimizes idle time between pressing operations. Additionally, Air Vacuum Forming Presses with Loading Unloading Trays are designed to trim foil edges during the process, further boosting efficiency.

A top investment for 2025, especially in the rapidly growing GTA kitchen and door market, this machine is widely used for MDF panel laminating and veneering in kitchen door production–making it an ideal choice for modern manufacturers.

The Air Vacuum Forming Presses with Loading Unloading Trays’s cycle process works explained in the steps below:

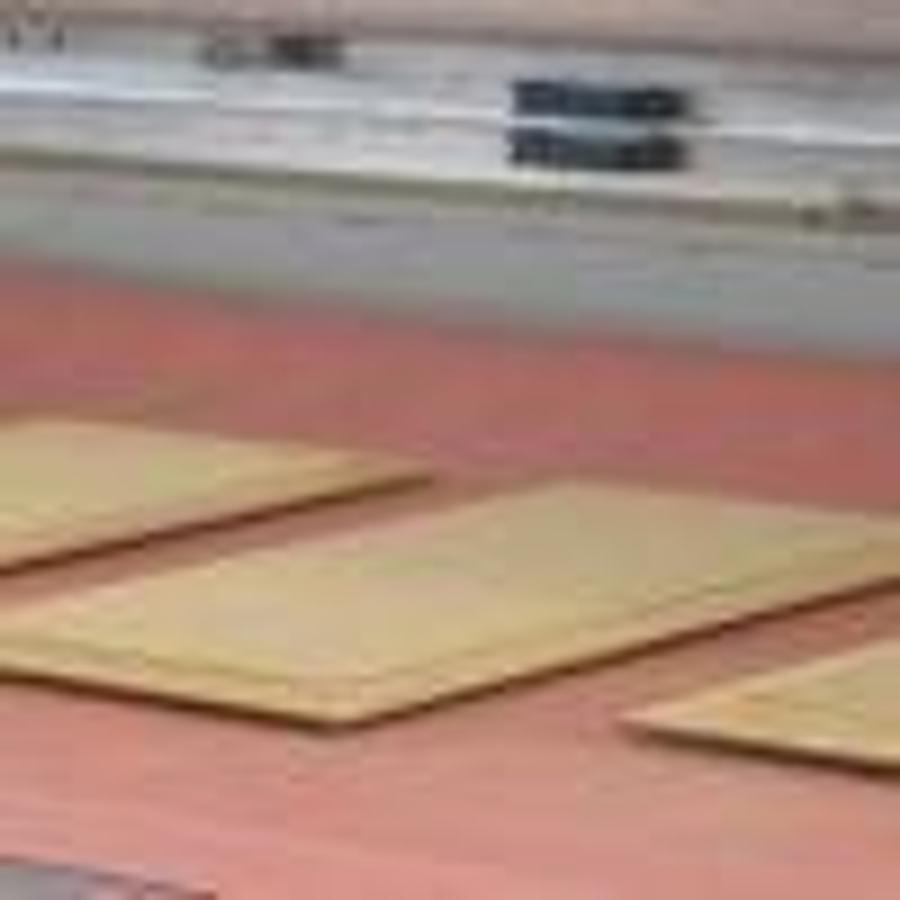

  • Disposition of the pre-glued panels – placed onto templates – on the bottom tray.
  • Covering of the bottom tray, with perimetric gasket, with the PVC foil.
  • Cutting of PVC at right lenght (through the manual shear, optional).
  • Automatic introduction of the tray into press (with double tray, optional, the loading/unloading movement is on the two sides of the press).
  • Closing of press.
  • making of vacuum from the top. In this way the PVC (or other thermoplastic foil) is attracted towards the top press platen, that through the heating makes the foil soft.
  • Supply of top pressure through heated air. Creation of bottom vacuum by means of a high-vacuum pump through a drilled grid placed in the bottom of the tray. The combination of top pressure and vacuum allows the perfect forming of the thermoplastic foil onto the raised panel.
  • Shorten pressing time.
  • Opening of the press, extraction of the tray and trimming of the PVC all around the panel edge.

    • Our Air Vacuum Forming Presses with Loading Unloading Trays can also be equipped on request with an easily extractable top air membrane (optional), allowing to apply veneer (thickness 0,4 mm.) on raised or flat panels.

    TECHNICAL DATA

  • Specific working pressure Kg/cm²: 4,5
  • Cylinders diameter:  3.34″
  • Cylinders stroke: 4 3/4″
  • Tray outside dimensions: 2550×57″ / 120″×57″
  • Tray inside dimensions: 94″×50 3/4″ / 113 3/4″×50 3/4″
  • Useful working dimensions: 92.5″×49″ / 112″×49
  • Nr. of pressing cylinders: 8 or 10.
  • Total pressure: 160 to 200 metric tons.

    • OPTIONAL

  • A second tray for loading – unloading
  • Frame with membrane: 25/14 – 30/14
  • Spare membrane: 25/14 – 30/14

    • Please contact us to lean more about the availability and options Get Your Free estimate for planer Today

    All press options are available at the link below

    Presses

    Black brother air vacuum press black bros also have similar configuration as well
