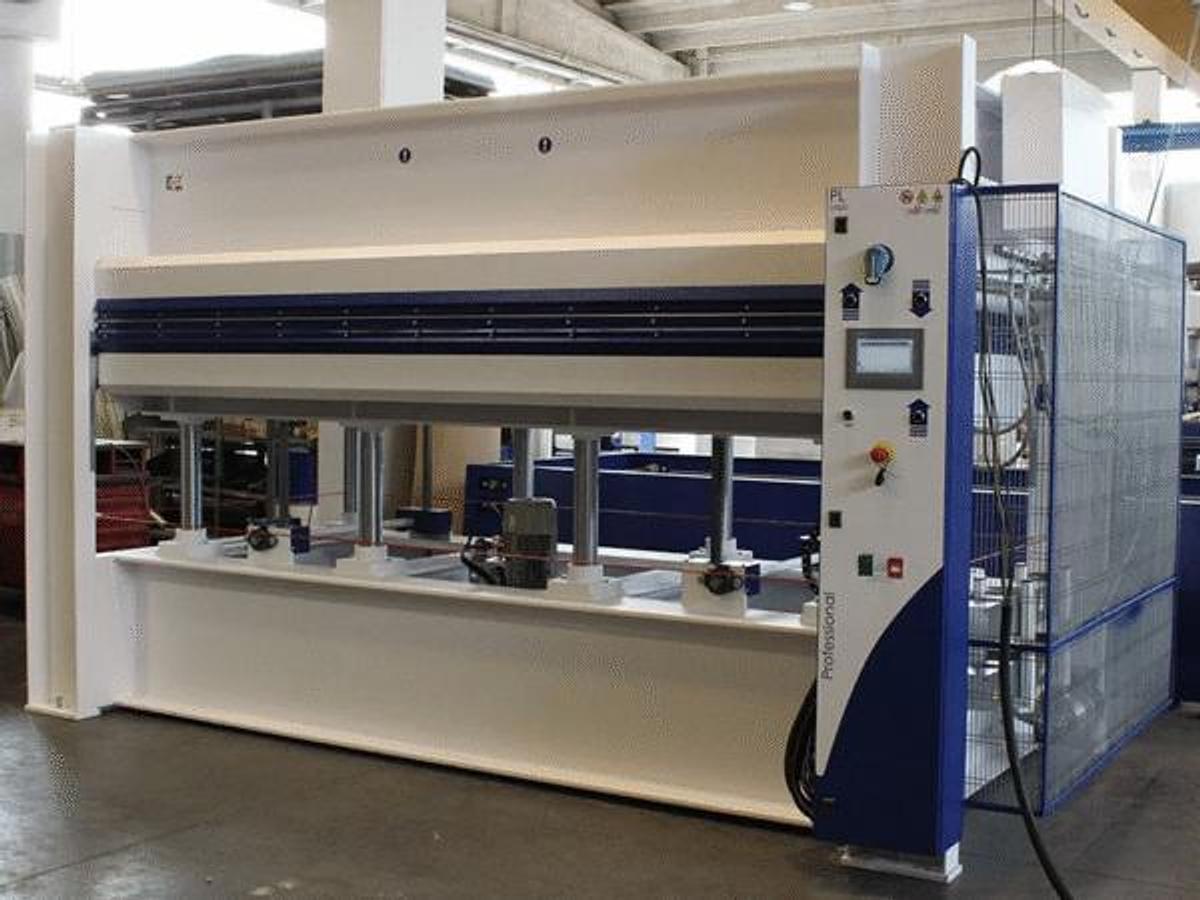

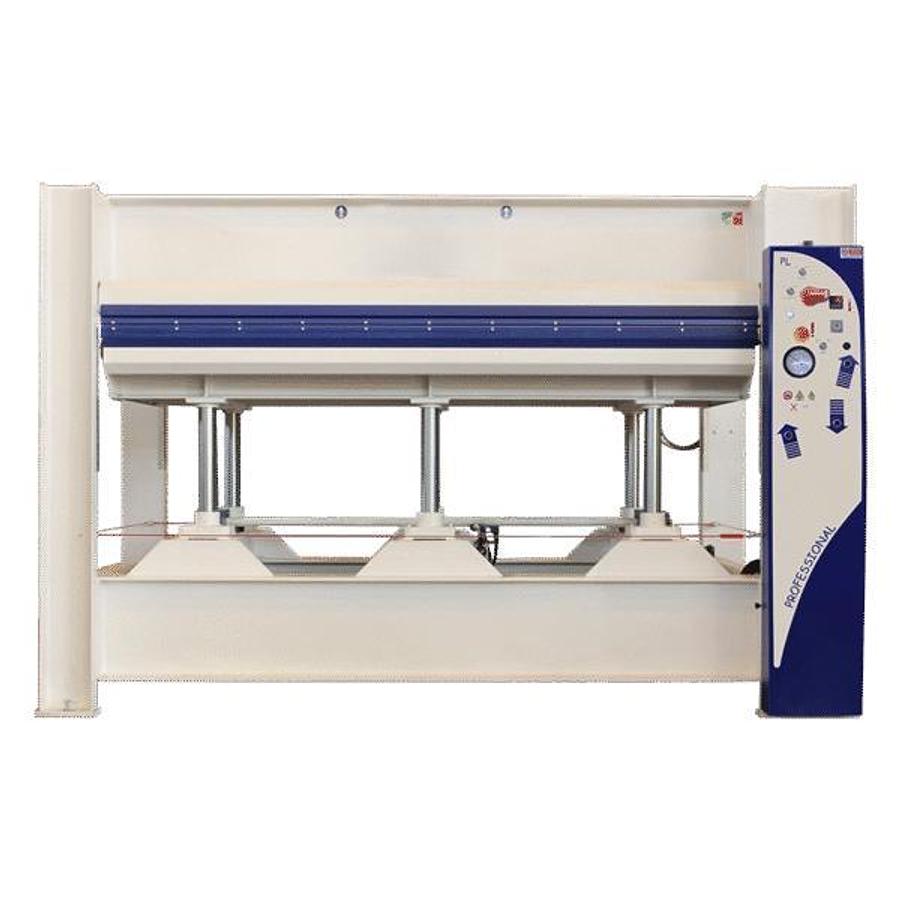

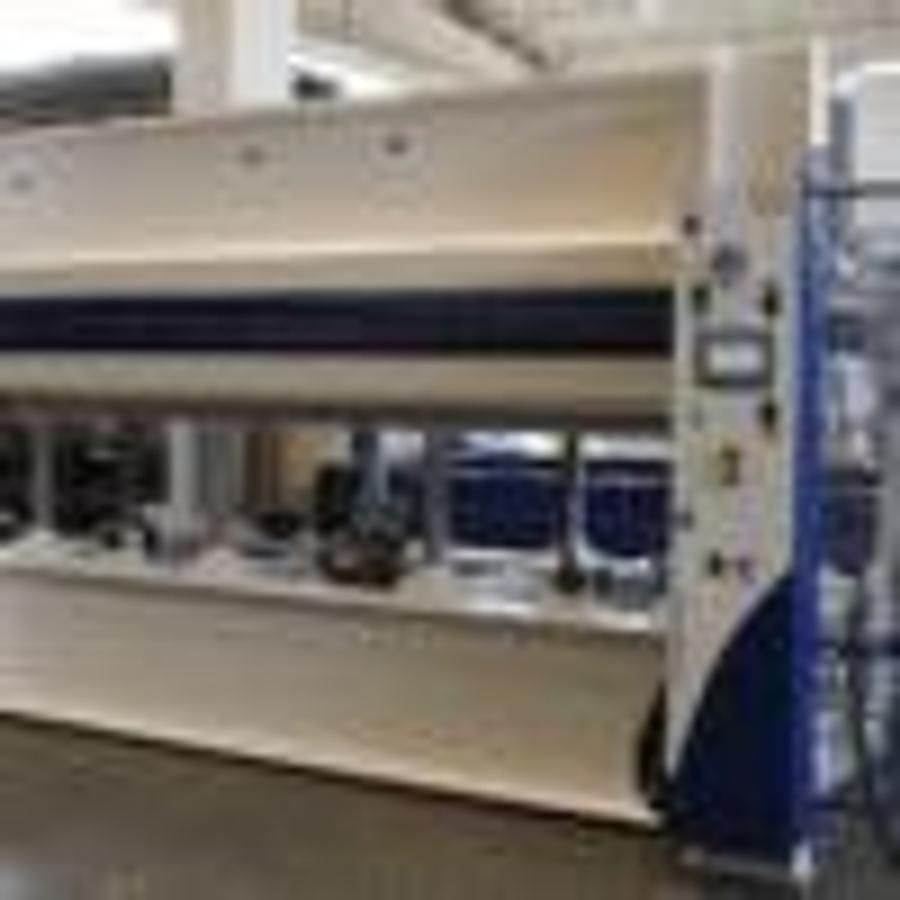

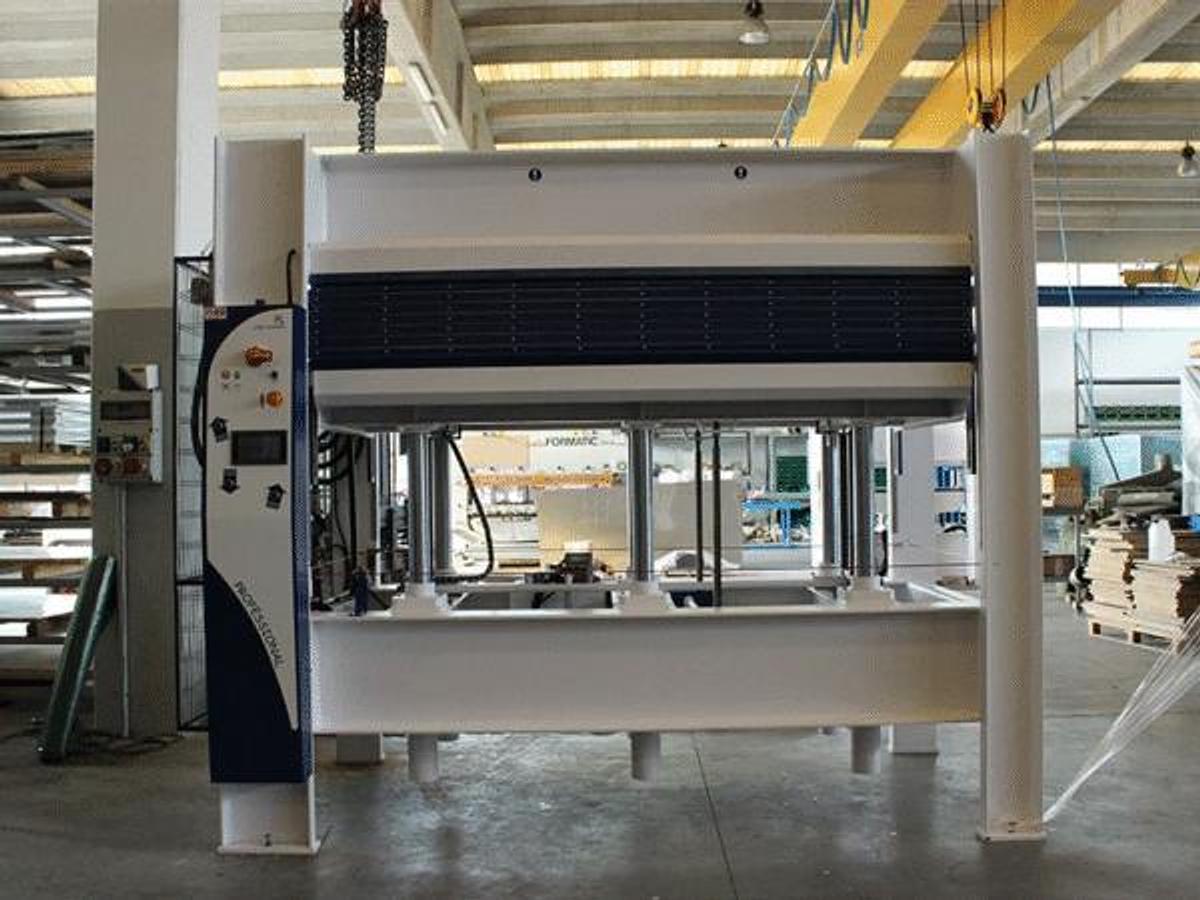

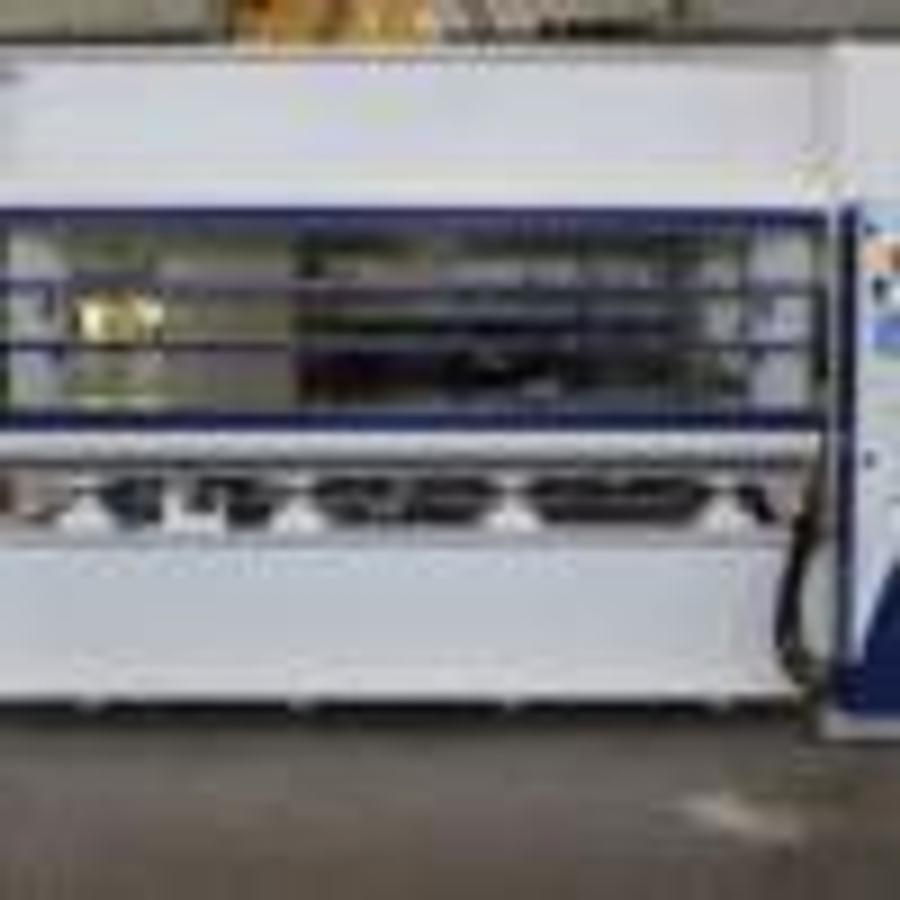

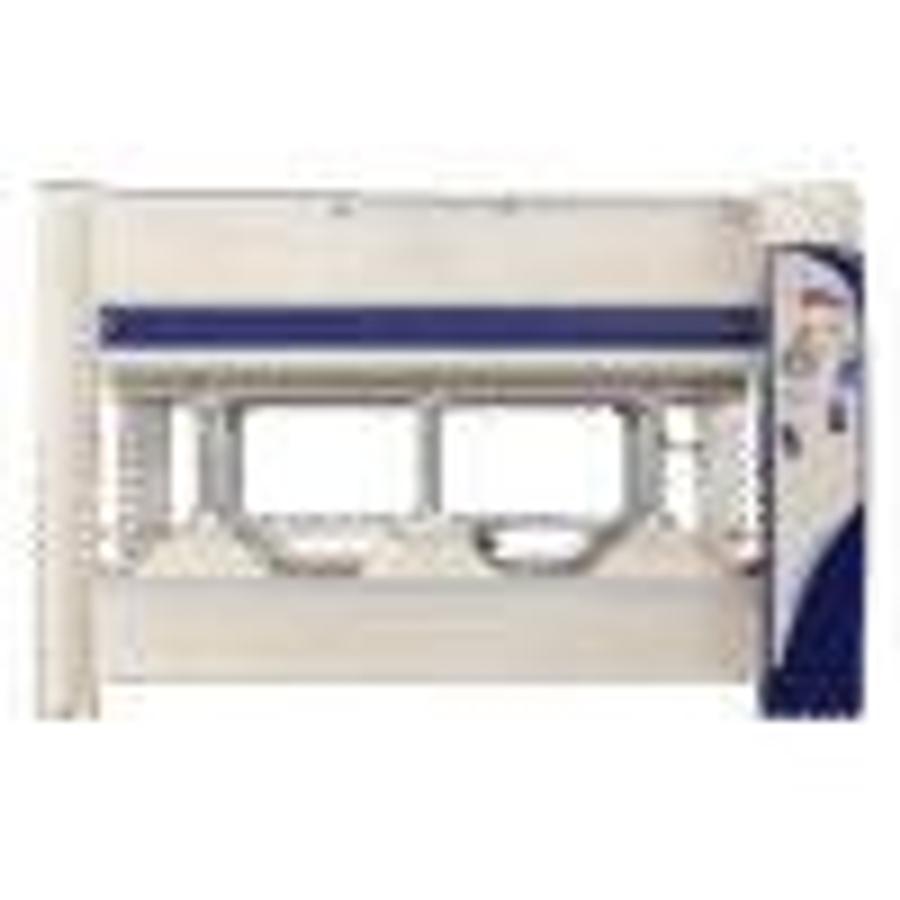

The Standard Press PL is designed specifically for the application of veneer or laminate coatings on MDF and chipboard panels. The PL series is typically used by small and medium-sized businesses, carpentry shops, and craftsmen.
The Standard Press PL is available in three standard sizes for 2500 x 1300mm to 3500 x 1300mm, with customized dimensions available according to customer requirements. Different heating surfaces, heating systems, and control panels are available depending on the required application.
The Standard Press PL can be configured with assembled heating surfaces, solid drilled steel surfaces, electrical surfaces, or assembled and milled surfaces for special applications. Heating options include water, diathermal oil, and cartridge electrical resistors.
Applications:
Application of veneer coatings on MDF panelsApplication of laminate coatings on MDF panelsApplication of veneer coatings on chipboard panelsApplication of laminate coatings on chipboard panelsStandard Press PL Standard Sizes:
2500 x 1300mm3000 x 1300mm3500 x 1300mmCustom sizes available according to customer requirementsTypes of Heating Surfaces:
Assembled Surfaces with Coil and Aluminum Coating
Maximum working temperature: 120°CMaximum specific working pressure: 3-5 kg/cm²Coil covered with 3mm thick calibrated sheet metalAluminum foil surfaceDesigned for efficient heat distributionSolid Drilled Steel Surfaces
Typical working temperature: 120°CMaximum specific pressure: 30 kg/cm²Manufactured from steel plates with circuit holesSurface can be coated with Mylar or Vetroteflon for temperatures above 120°CElectrical Surfaces
Chipboard baseAluminum plate containing electrical resistorsMaximum working temperature: 120°CAnodized surface available on request for greater wear resistanceAssembled and Milled Surfaces:
For special applications:
Maximum working temperature: 120°CMaximum specific working pressure: 5-10 kg/cm²CNC milled to a standard roughness of 1.6 micronsCoil covered on both sides with 8mm thickNail-welded constructionAluminum foil or stainless steel surfaceHeating Systems:
Water Boiler
Heating Fluid: WaterMaximum Fluid Temperature: 85°CHeating Time: 40 minutesProtection: InsulationHoses: Flexible rubberElectric boilerWater recirculation pumpPiping and insulation to reduce heat lossOil Boiler

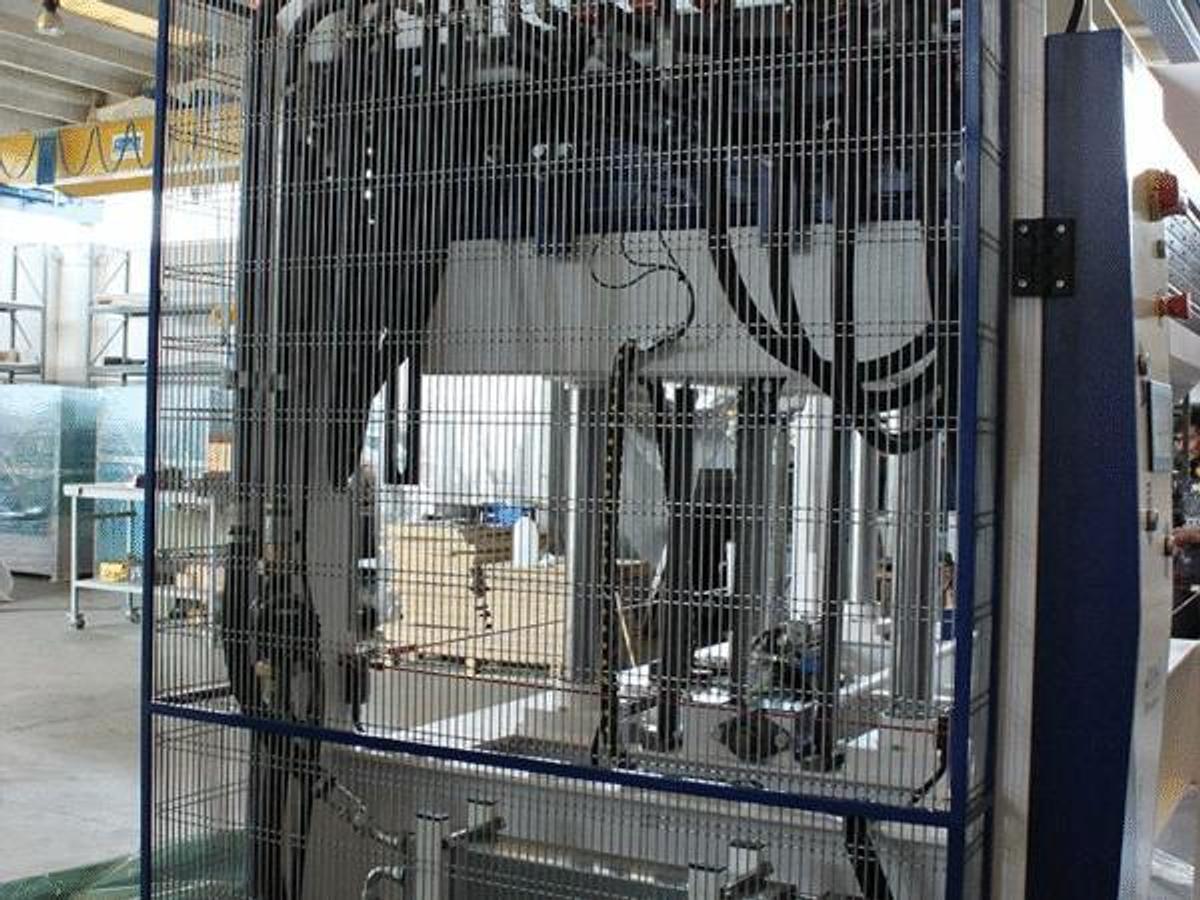

Heating Fluid: Diathermal oil, viscosity 32 cStStandard Maximum Oil Temperature: 120°CWarm-Up Time: 50 minutesProtection: Nets around boiler and pipesHoses: Stainless steelElectric boilerOil recirculation pumpPipes and insulation to reduce heat lossCartridge Electrical Resistors:
Cartridge electrical resistance heating systemControl Panel:
The Standard Press PL can be configured with:

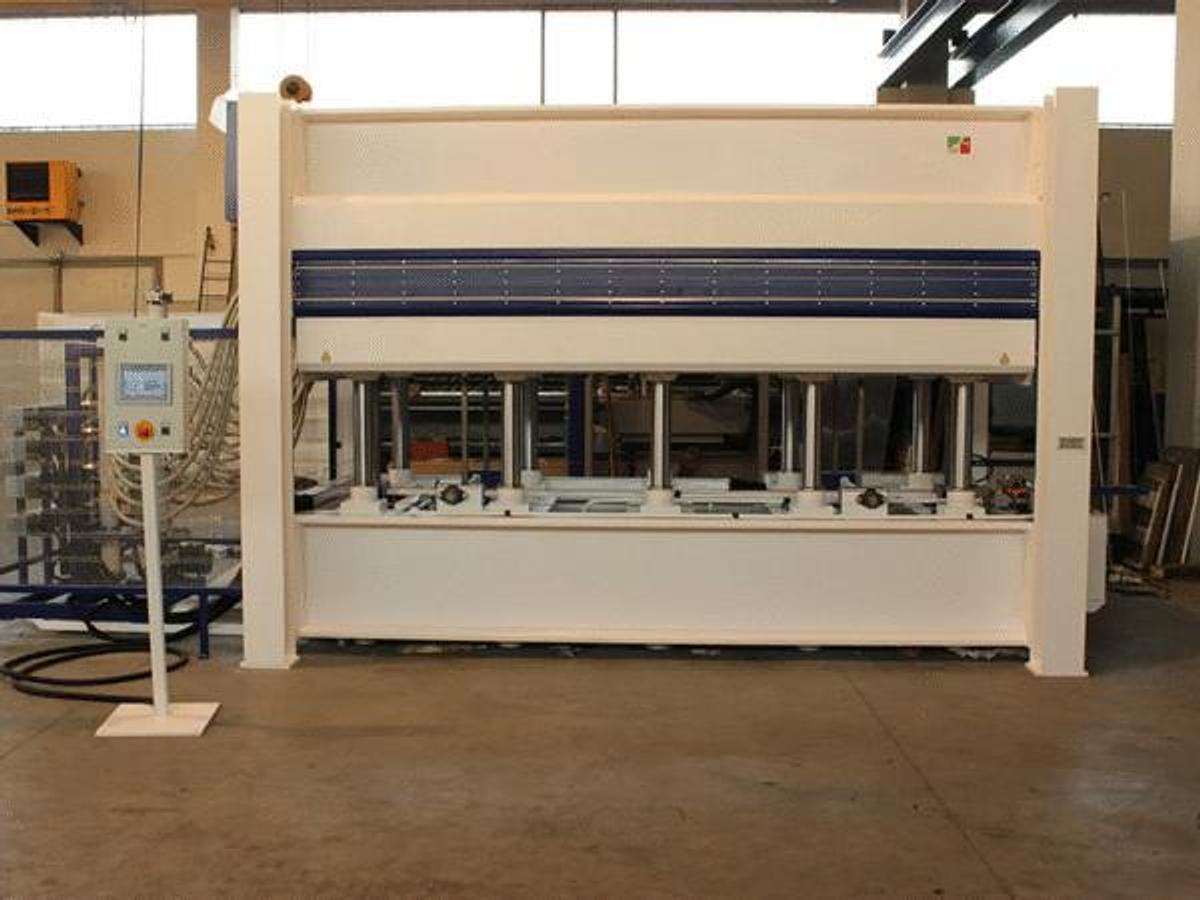

Standard control panel with pressure gaugeDigital touchscreen Logic Control panelOptional Equipment:

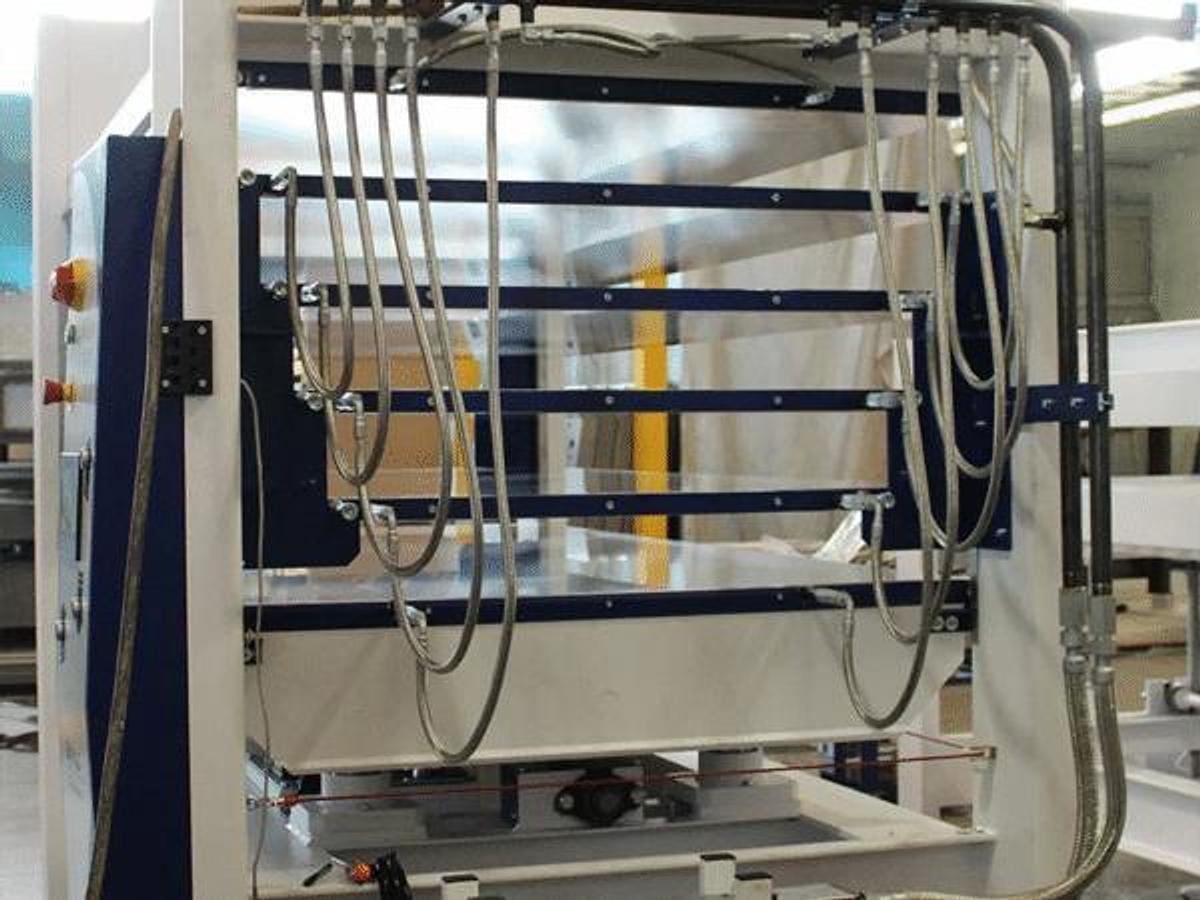

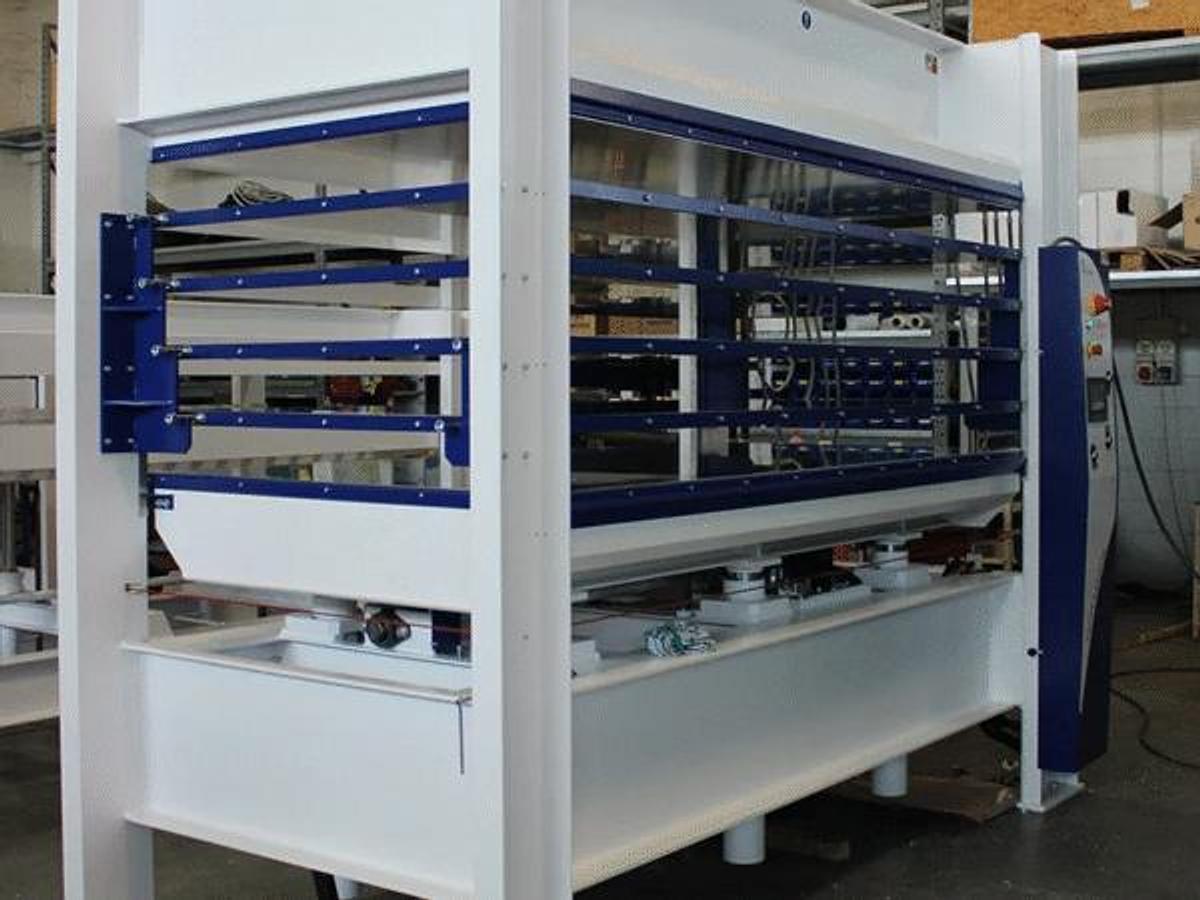

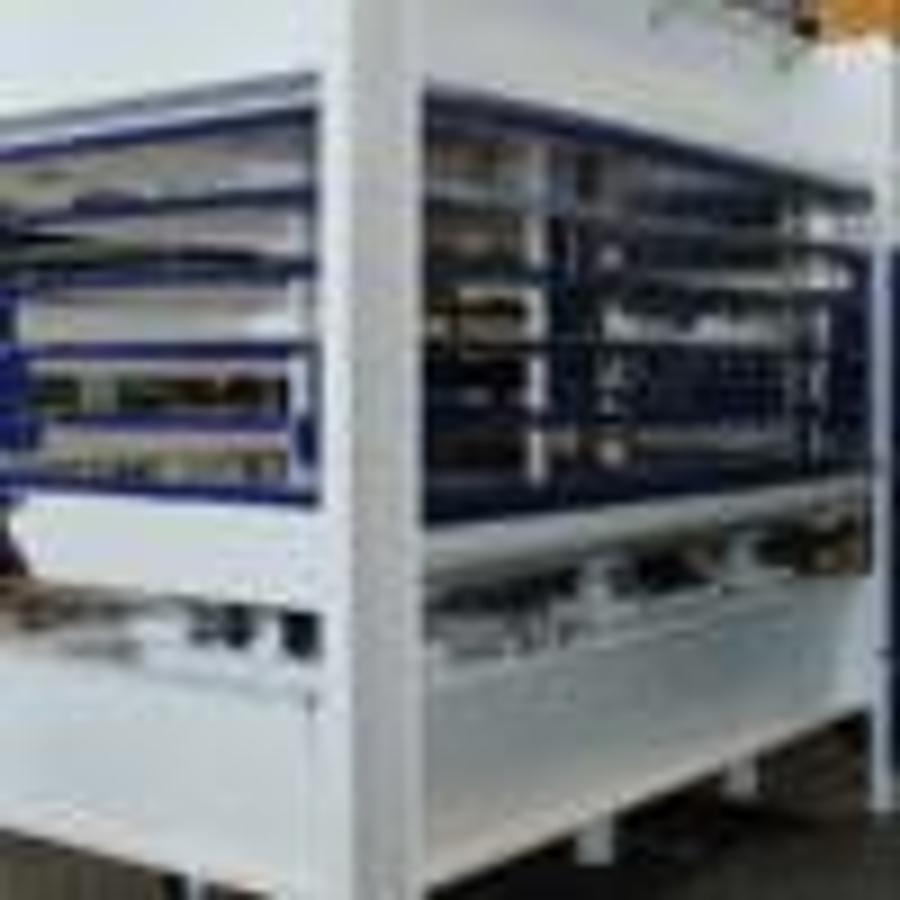

Customized work surface sizeCustomized thrust pressureCustomized cylinder strokeIntermediate surfaces for multi-daylight pressingParallelism controlElectrical cylinder exclusion with parallelism controlManual cylinder exclusionPower disconnectorSpecial temperatures of 150°C, 180°C, 200°C, 250°C and aboveDifferentiated temperatures on the work surfacesHeat exchangerIncreased 5mm sheet thickness on assembled surfaces for specific applicationsRectified and/or chrome-plated solid surfacesDifferent closing and opening speedsIndustrial 4.0 system for interconnection with company computer systemsUpper movable work surfaceSpecial software for adjusting temperature curves and downloading data to a PCConfiguration without heatingTransducers for setting opening, closing, and slowing of the work surfacesSensors for adjusting work surface heightSpecial voltagesNon-EU regulationsCustomizable maximum temperatureThe Standard Press PL complies with the EC 2006/42/EC Machinery Directive.
