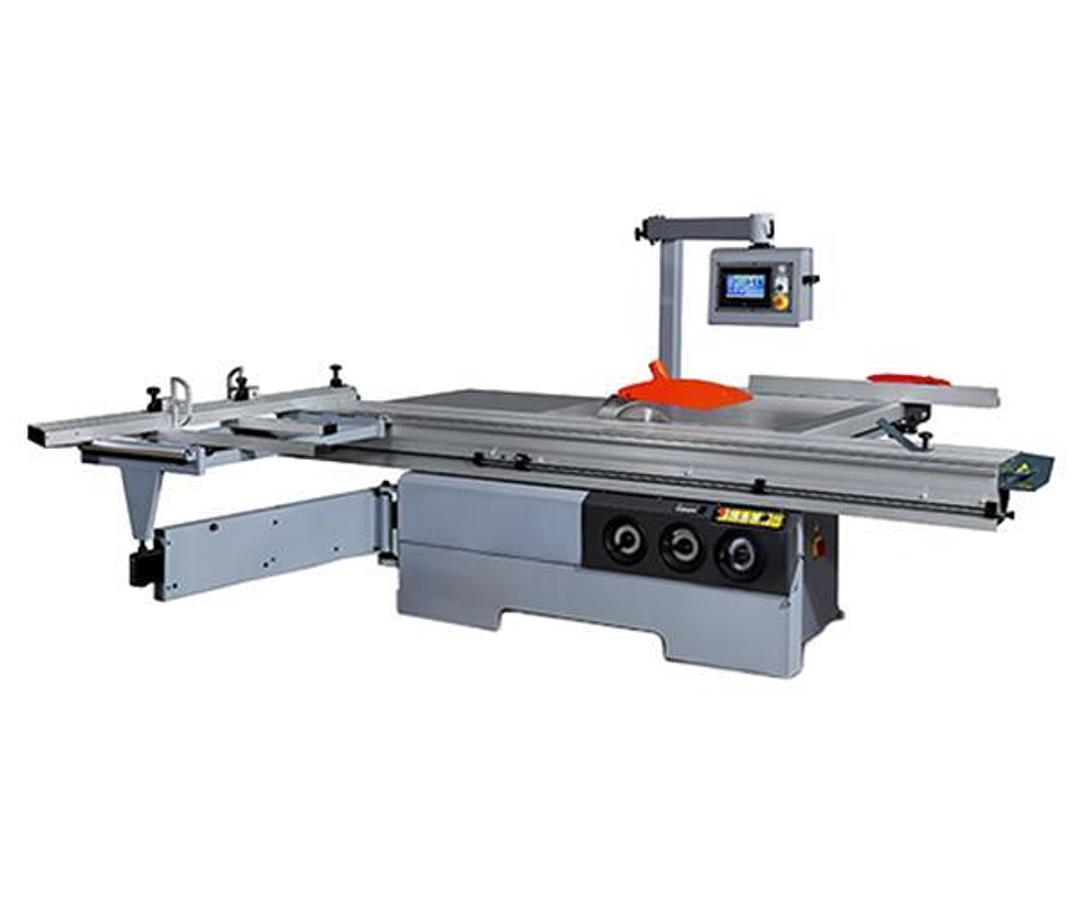

Vacuum Hood Sliding Table Saw Milan 10CXL, 12CXL

Sliding Table Saw Operation Video

Vacuum Hood Sliding Table Saw available on 10 and 12 foot long

Product Features:

CNC control screen for speed and precision

CNC Longitudinal Ruler Positioning: Reduce the sliding table setup time

High-Quality Linear Guide Rail Sawing System:  Accurate and long term usability ensured.

Automatic Angle Adjustment: The Sliding table Saw angle arrange from the control panel, form 0-45 and 90 degrees.

Total Solution for Intelligent Furniture Production:

Technical Parameters:

Sliding Table Length (mm): 3800

Maximum Cutting Length (mm): 3720

Vertical Cutting Height (mm): 80 (Optional 100)

Vertical Baffle Rod Stroke (mm): 1250

Main Saw Lifting Mode: Automatic

Blade Tilting Degree: 0 to 45°

Main Saw Power (kW): 5.5

Main Saw Size (mm): Ø300Ø30 (Optional Ø350Ø30)

Scoring Saw Power (kW): 1.1

Scoring Saw Size (mm): Ø120*Ø22

The Vacuum Hood Sliding Table Saw offers a comprehensive and intelligent solution for modern furniture production, combining high-precision cutting capabilities with automatic adjustments and advanced CNC positioning for consistent, professional results. Its user-friendly touch screen interface allows for easy control and quick setup, making it accessible even for less experienced operators. Built with durable, high-quality components, the Vacuum Hood Sliding Table Saw ensures long-term reliability and performance. Whether you’re handling small custom jobs or large-scale production, its versatility and efficiency make it an ideal choice for a wide range of woodworking and panel processing applications.

CNC slitting and positioning accuracy：±0.1mm

CNC slitting and moving speed：250MM/S

The maximum positioning size of the slitting support：1200mm
