CNC Beam Saw Professional

Cutting upto three panel in one cut and 230 foot  per min cutting speed, compact and updated nesting software

Beam saw redefined

High volume panel cutting needs covered!

The CNC Beam Saw Professional, available in the Turanlar T-PE 434 and T-PE 435 models, is designed to cut panels with unmatched accuracy and precision. These machines offer both serial and standard production capabilities, enabling you to produce more efficiently and with higher quality while minimizing waste. This translate into superior competitive power in the market. With over 50 years of experience in manufacturing woodworking machines, Moon Machinery Inc, a proud dealer of Turanlar, provides excellent and economical solutions for businesses of all sizes. The CBC Beam Saw Professional delivers panel cutting solutions that increase production efficiency for Canadian and American customers. Designed for both small-scale workshops and high-volume production facilities, the CNC Beam Saw Professional ensures precision, reliability, and consistent results.

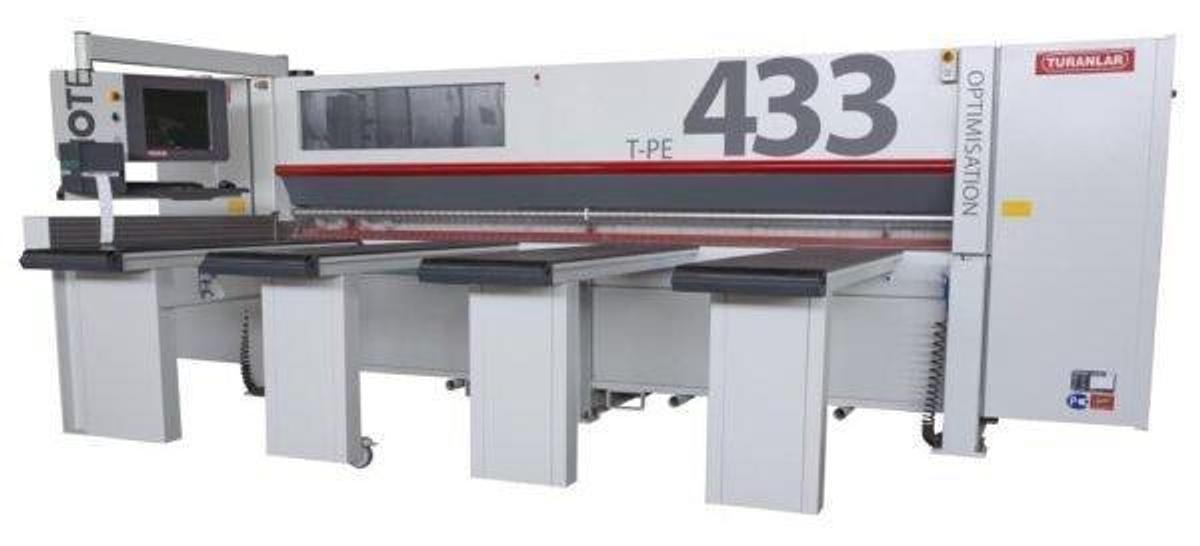

T-PE 433 panel saw:

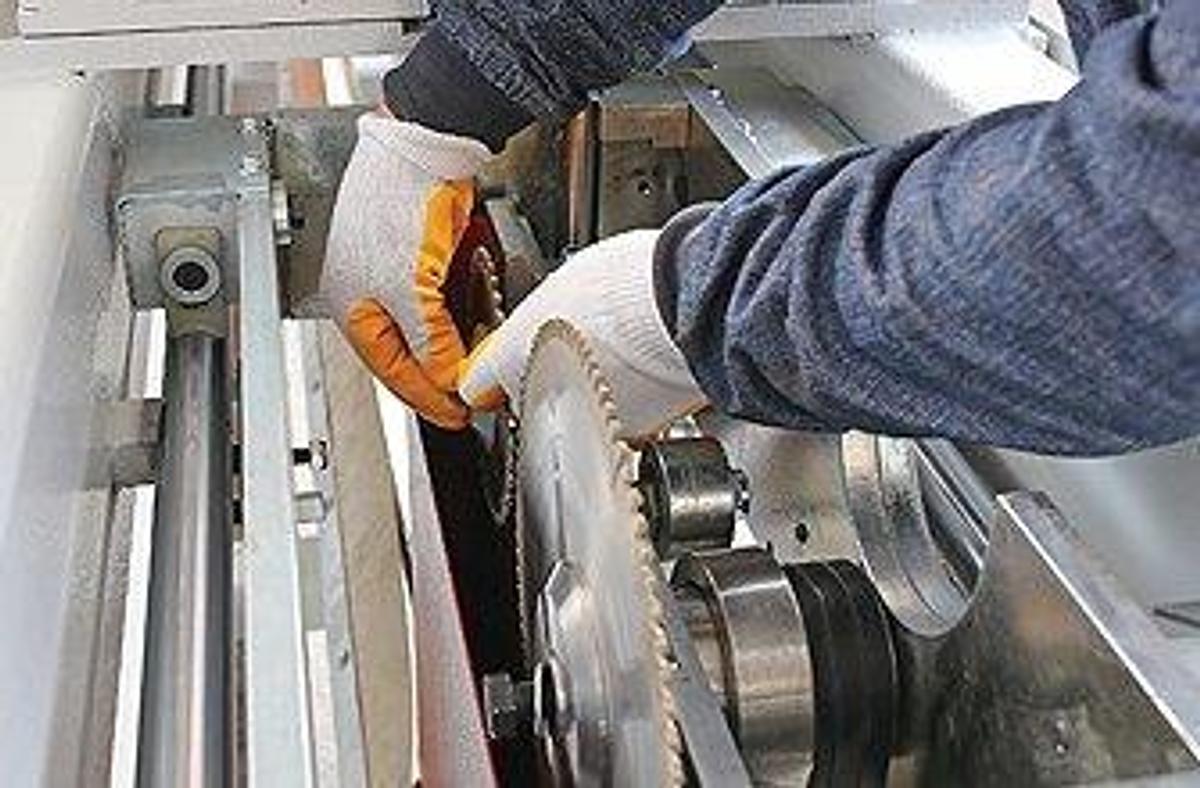

Easy saw changing:

Pressure beam saw, panel cutting machine comes standard with the option of a saw bolt removal/installation system (1.A), while the pneumatic system (1.B) is available as an add-on feature. With either system, saw changing time remains consistent between the mechanical and pneumatic options.

CNC Beam Saw Professional Key Advantages

Optional Features

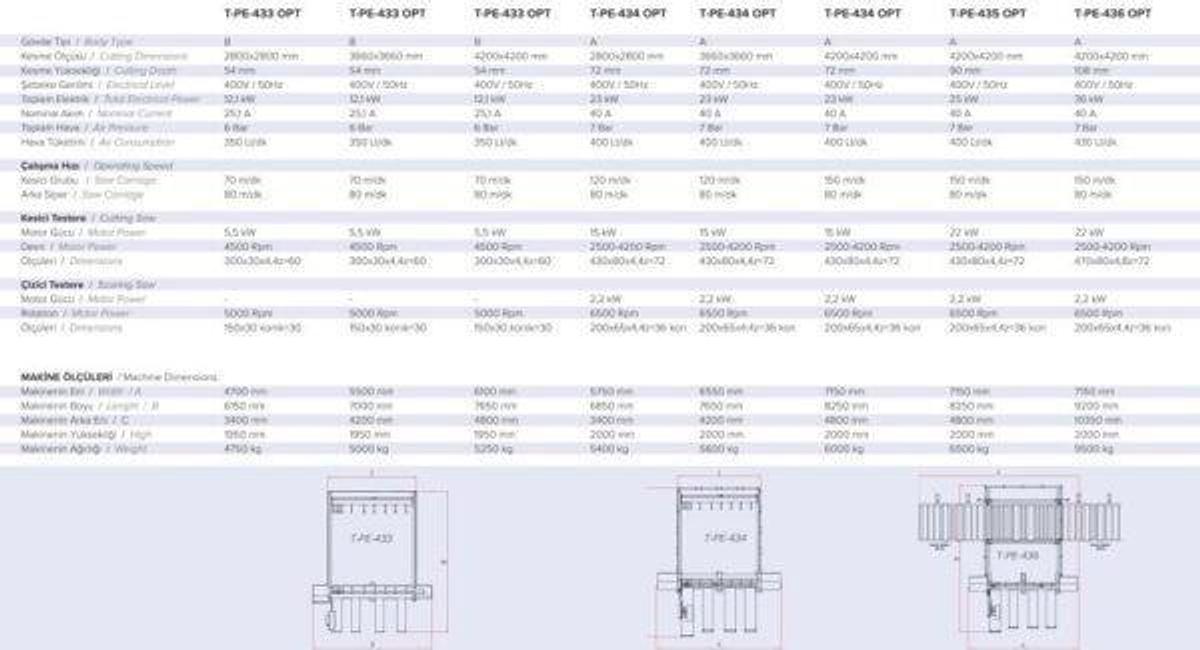

CNC Beam Saw Professional Technical Specifications

Body Type: B

Cutting Depth 2.12″

Air Pressure 6 Bar

Air Consumption 350 Lt/dk

Operating Speed

Saw Carriage 230 foot/min

Cutting Saw:

Motor Power 5,5 kW

Motor RPM: 4500 Rpm

Dimensions 300x30x4,4z=60

Scoring Saw:

Motor Power – – – 2,2 kW

Motor Power 5000 Rpm

Dimensions 150×30 center=30

Machine Dimensions

Width / A 185″ mm

Lenght / B 242″

Machine back side width: C 133″

High 76″

Weight 10450 lbs

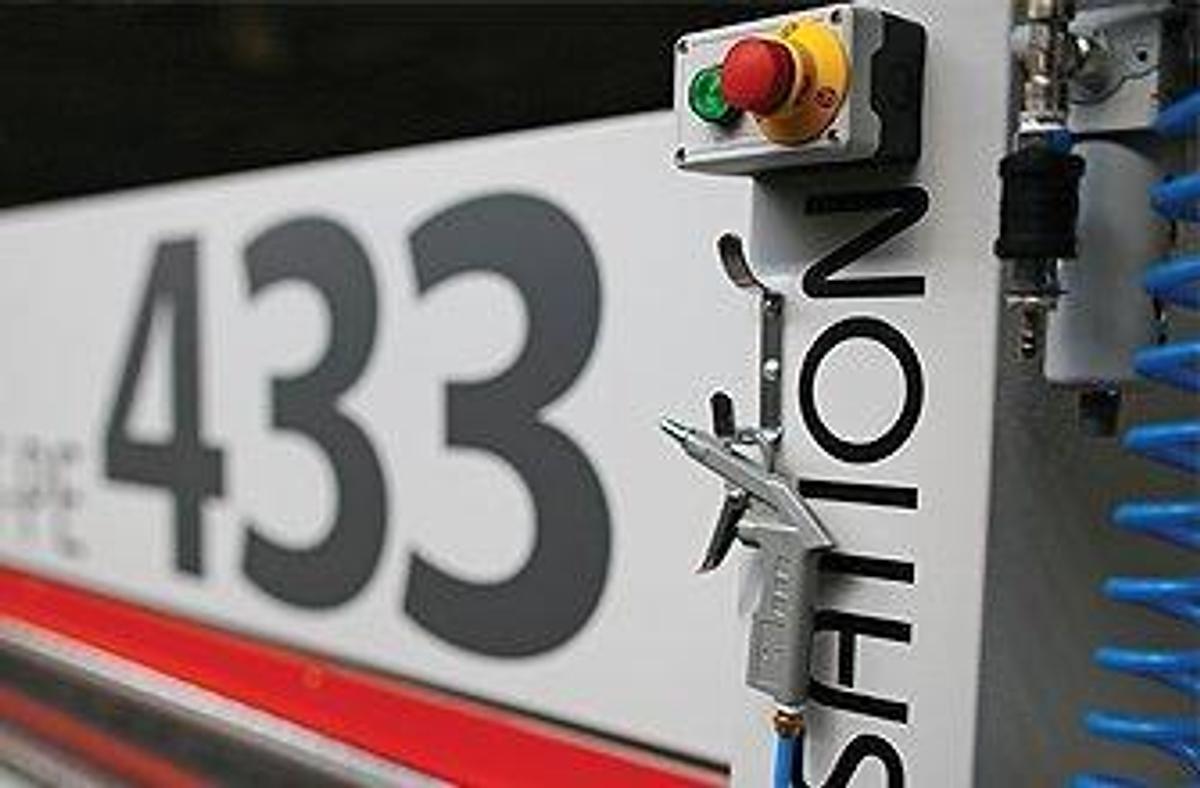

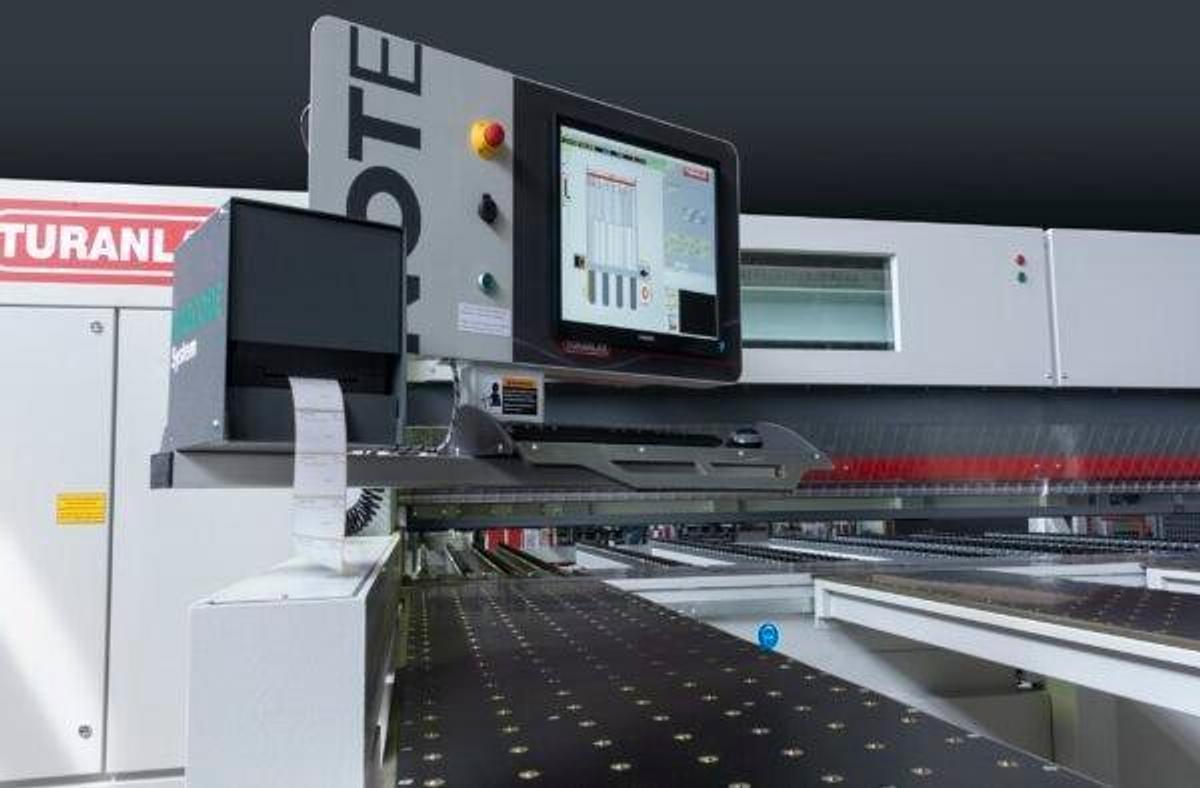

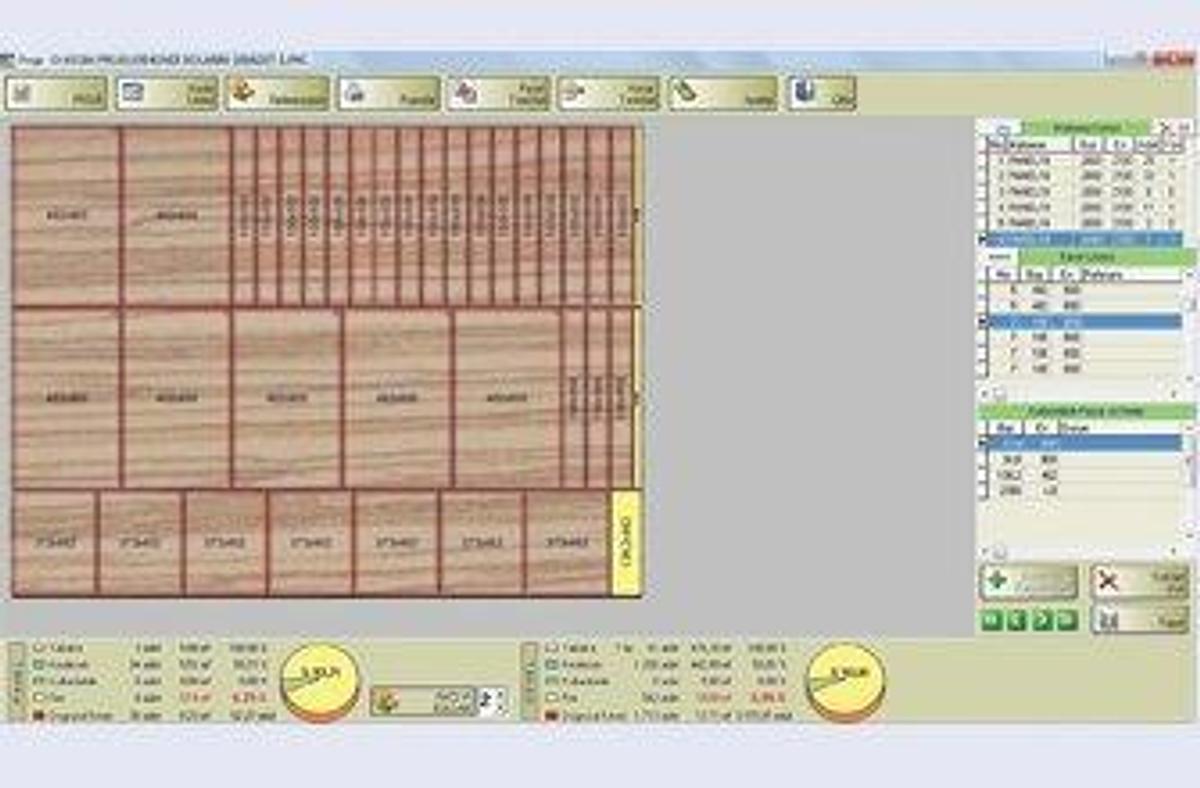

Industrial beam saw solutions for high and medium capacity facilities. It is a high capacity slicing for sunta and mdf panel cutting with automatic feeding and remote start stop. All the necessary nesting optimization made by internal software, very easy to operate user friendly interface. Sliding beam process are done automatically with the touch panel integrated into the machine. It is an easy to use, maintenance-free, long-lasting machine on the multi panel cutting process.

The CNC Beam Saw Professional offers industrial beam saw solutions for high and medium-capacity facilities. It provides high-capacity panel cutting for SUNTA and MDF panels, featuring automatic feeding and remote start/stop functionality. All necessary optimization is handled by the internal software, with a user-friendly interface that makes operation simple and efficient. The sliding beam process is fully automated via the integrated touch panel, ensuring smooth and precise cutting. The CNC Beam Saw Professional is easy to use, virtually maintenance-free, and built to last, making it ideal for multi-panel cutting processes in demanding production environments.
