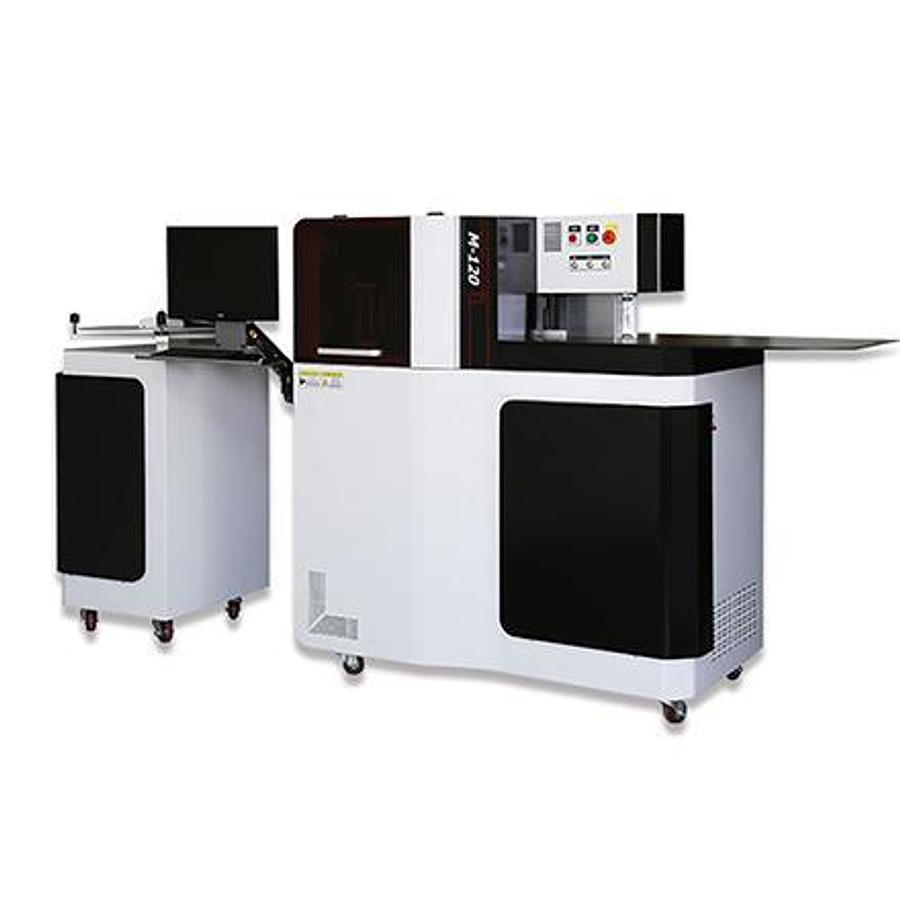

Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120

Description

The Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 is a high-precision CNC solution designed for fabricating aluminum and stainless steel channel letters, logos, and custom signage. Engineered for professional sign manufacturers, this machine delivers fast, accurate bending with minimal setup, making it an excellent choice for both custom projects and high-volume production.

Built to process a variety of flat metal materials, the Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 is capable of bending flat aluminum, stainless steel, and galvanized steel with exceptional precision. Its servo motor-driven feeding system and ball screw transmission provide smooth, accurate material handling while preventing deformation during processing. The dual-axis telescopic bending structure allows for tight-radius bends and complex shapes with minimal manual finishing.

The Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 features a closed-loop feeding system capable of material positioning accuracy up to 0.01mm, ensuring every finished letter matches the original design. With support for common vector file formats including AI, PLT, DXF, and NC, the machine integrates seamlessly into modern sign manufacturing workflows.

Designed for reliability and efficiency, the Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 incorporates premium alloy tooling that eliminates the need for grinding while extending tool life. Combined with intelligent software, modular electronics, and high-performance servo control, it delivers consistent, professional-quality results for a wide range of commercial signage applications.

Key Features:

Designed for aluminum, stainless steel and galvanized steel letters

High-precision servo motor control system

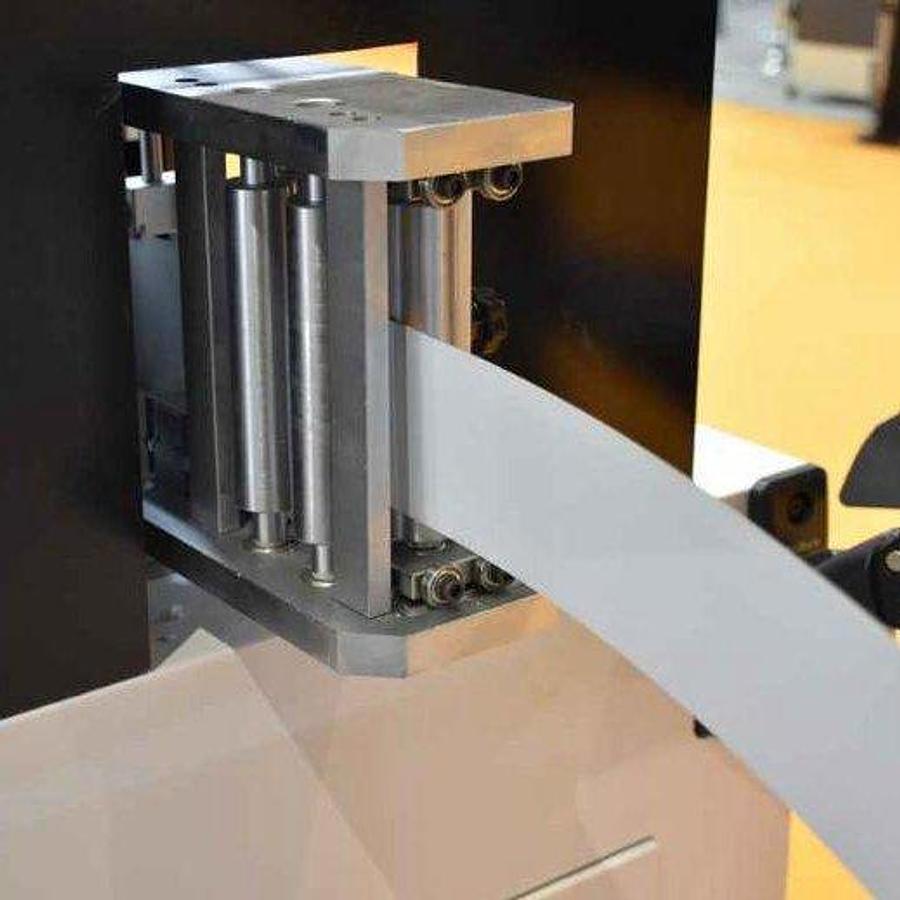

Ball screw transmission for accurate material feeding

Closed-loop feeding system with 0.1mm positioning accuracy

Dual-axis telescopic bending structure for complex shapes

Mechanical arm alternating feeding system

Long-life alloy bending knives requiring no grinding

Supports AI, PLT, DXF, NC, and other vector file formats

Modular electrical control system for increased stability

High-speed processing with minimal material deformation

Material Capacity:

Material Width: 20-120mm

Material Thickness:

Stainless Steel: 0.3-2.0mm

Galvanized Steel: 0.4-1.2mm

Flat Aluminum: 0.6-1.5mm

Compatible Materials:

Flat Aluminum

Stainless Steel

Galvanized Steel

Applications

The Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 is ideal for producing:

Channel letters

Stainless steel letters

Aluminum letters

Commercial signage

Storefront signs

Corporate logos

Illuminated signs

Architectural signage

Custom metal lettering

Advertising displays

Advanced Components

Closed-loop feed feedback system

Ball screw transmission with servo motor control

Dual-axis telescopic bending system

Mechanical arm alternating feeding structure

Korean alloy plane cutter

Integrated IO PCB control board

Modular electrical control system

Intelligent CNC software with multi-point slotting capability

Optional Equipment

Industrial PC with pre-installed software and tested parameters

Planar cutter for slotting stainless steel and flat aluminum

Air supply system, (0.6-0.8 MPa)

The Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120is an ideal solution for sign manufacturers seeking precision, speed, and versatility when producing aluminum and stainless steel channel letters. Combining advanced CNC technology, servo-driven accuracy, and durable construction, the Automatic Flat Aluminum Stainless Steel Letter Bending Machine AEL-M120 delivers consistent professional-quality results for a wide variety of commercial signage applications.

Specifications

Condition

New
